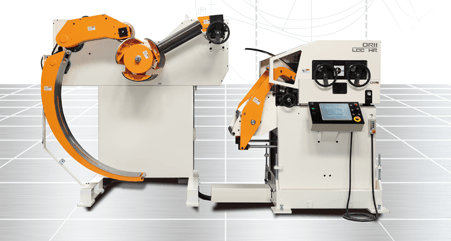

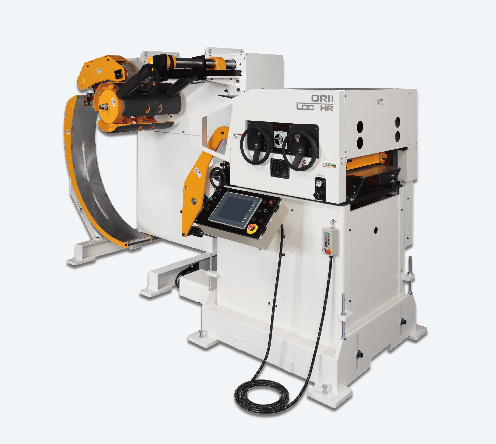

LCC HR3 Coil Straightener-Feeders
CNC controls have enhanced the intelligent functions of the LCC HR3 coil straightener-feeder, improving on the equipment's already multi-purpose capabilities.

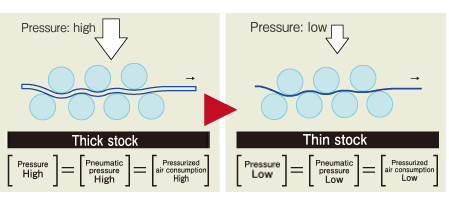

The LCC HR3 coil straightener-feeder includes an energy-saving roll lift mechanism with auto-control of pneumatic cylinder pressure used in material straightening. This feature enables optimization according to stock thickness, achieving energy-savings of 30% to 50%.
Although the size has been compacted for a total length of only 3734mm (LCC04, 05, 06 HR3), this series handles material from 400 mm (15) to 1300mm (51) wide and up to 6.0mm (0.236) thick and can be used for a wide variety of purposes. The LCC HR3 series of coil straightener-feeders succeeds in prioritizing optimized work space.

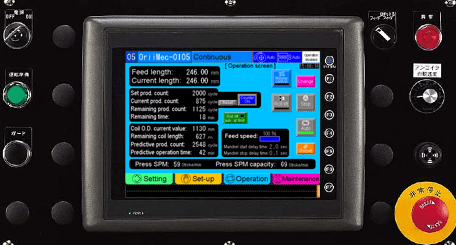

TP-CCS Allen-Bradley Controller
Amada offers its straightener-feeders with a choice of either its original TP-CCS controller or an Allen-Bradley controller. All aspects of planning, operation, and maintenance are managed with a sophisticated control system that can navigate diverse product requirements while reducing costs of labor.

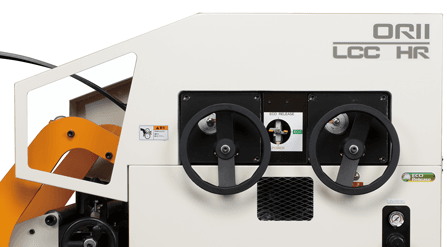

Large straightening roll adjustment wheel
The LCC HR3 coil straightener-feeder features a large straightening roll adjustment hand wheel that uses symbols indicators, improving repeatability and permitting easy numerical setting.
Oriimec's high-quality CNC machine design
With full CNC capability, the LCC HR3 series of coil straightener-feeders offers excellent handling and operability with high precision and reliability.
