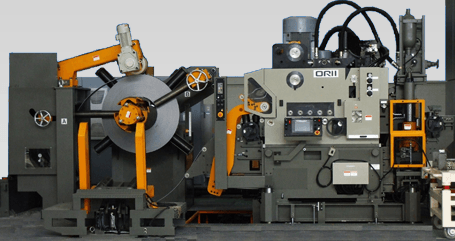

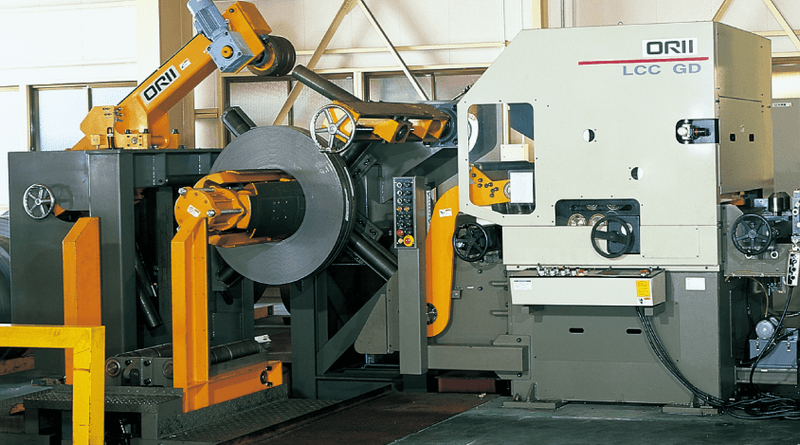

LCC GD/GD2 Coil Straightener-Feeders

Item Code: LCC GD / GD2

Oriimec's GD/GD2 series of coil straightener-feeders can handle plate with a thickness of up to 12.0 mm(0.472).

These super machines are the most advanced equipment of the series.

Their sturdy form symbolizes their superior performance and tremendous reserves power.

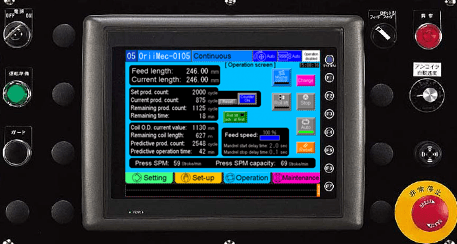

TP-CCS Allen-Bradley Controller

Equipped with either a TP-CCS or Allen-Bradley controller (customer's choice), the LCC GD/GD2 straightener-feeders provide full control of all planning, operation and maintenance functions with a high-level of programming versatility and time-saving features.



GD2

A renewed lineup with a full complement of NC straightener feeder for thick stock. Nine-work roll specifications.

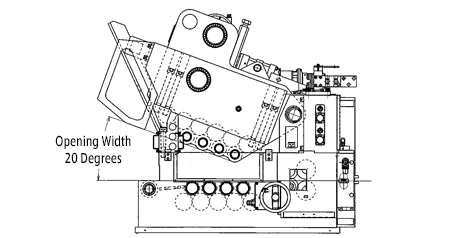

Easy Access to Work Rolls (LCC06GD2)

The work rolls on the GD2 coil straightener-feeder can be opened to a maximum of 20 degrees, making roll cleaning much easier. The machine was designed to allow easy access to the inside structure for improved maintenance.

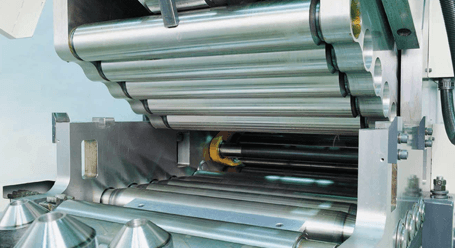

9 Work Rolls (LCC06GD2)

The GD2 coil straightener-feeder represents a new standard in feeding technology, with the ability to handle plate up to 12.0mm(0.472) thick. Combining the power of the heavy-duty GD unit with the straightening performance of 9 work rolls (5 upper and 4 lower), the GD2 coil straightener-feeder gives material a high degree of flatness.



Specifications
