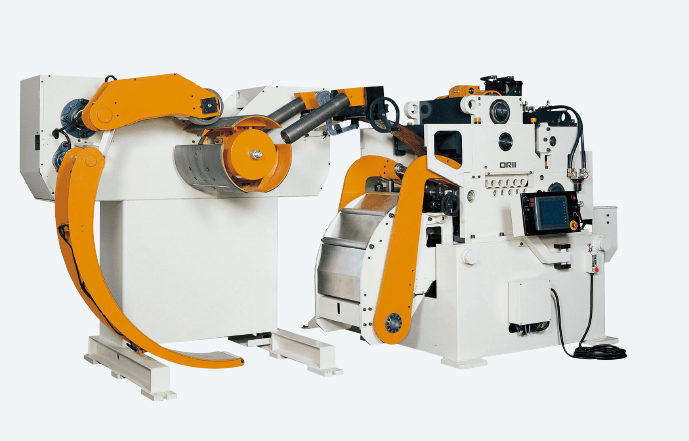

LCC HL Coil Straightener-Feeders
The LCC HL series of coil straightener-feeders handles material from 600mm (23) to 1,300mm(51) wide and up to 6.0mm(0.236) thick.
The 11 work rolls enable an extraordinary level of flatness for materials.

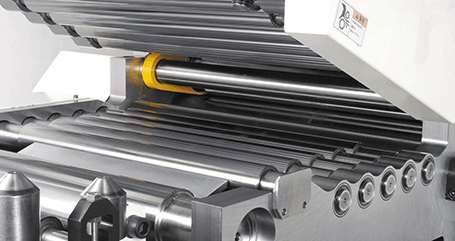

High Degree of Flatness
Combining the power of the heavy-duty HL unit with the straightening performance of 11 work rolls (6 upper and 5 lower), the HL coil straightener-feeder gives material a high degree of flatness to materials up to 6.0mm(0.236) thick.

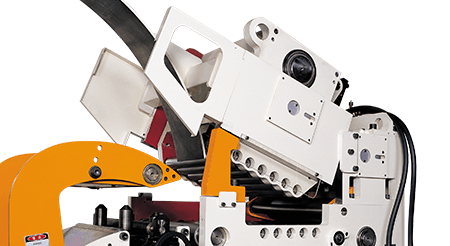

Easy Access to Work Rolls
The work rolls on the HL coil straightening-feeder machine can be opened to a maximum of 20 degree, making roll cleaning much easier. The machine was designed to allow easy access to the inside structure for improved maintenance.
Work Rolls Drive System

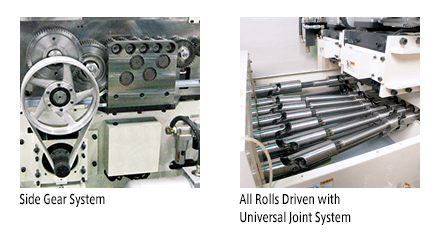

Side Gear System
The feed roll is equipped with gears that drive each roll, making the lower work rolls run.
All Rolls Driven with Universal Joint System
This coil line system makes all rolls through universal joints which connect each roll by a motor-driven parallel gear box. This system is especially recommended for both high tension materials and easy-to-slip materials.

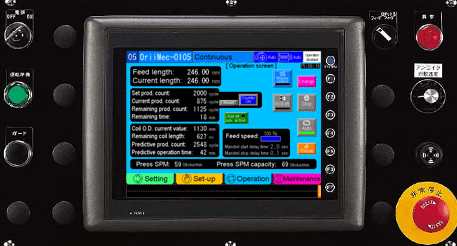

TP-CCS Allen-Bradley Controller
The LCC HL series of coil straightener-feeders can be outfitted with either Amada's original TP-CCS controller or an Allen-Bradley Controller for full management of a wide variety of planning, operation and maintenance functions. Equipped with these controls, the LCC HL coil straightener-feeder can handle the simplest to most complex production requirements, respond to changing needs and optimize worker time.
High torque / high rigidity
All rolls drive system (HLU model) * and frame rigidity improvement (four times higher than the conventional equipment) have enabled straightening of high-tensile steel.
* Refer to the work roll drive system
