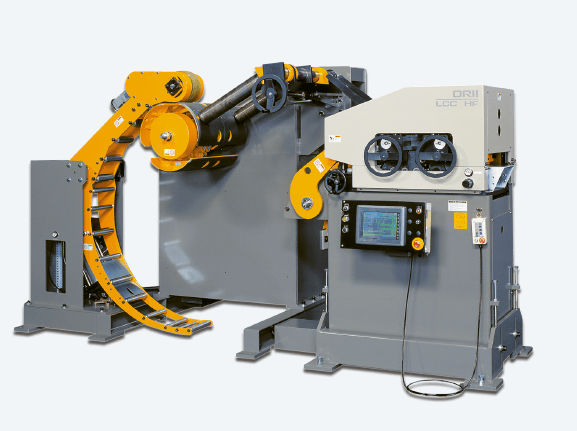

LCC HF4/HF2 Coil Straightener-Feeders

Item Code: LCC HF4

The LCC HF4 and HF2 coil straightener-feeders complement Oriimec's universal series lineup, responding precisely to a wide variety of needs.

The LCC HF series of coil straightening-feeder machines are reliable best sellers.

The HF Series of press automation equipment maximizes workspace by reducing the system's dimension as much as possible.

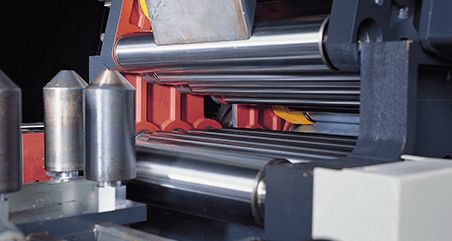

As standard equipment, the HF Series coil straightener-feeders come with 2 sets of entry coil width vertical guide rollers.

Feed roll pressure is easily adjusted by using an air cylinder.

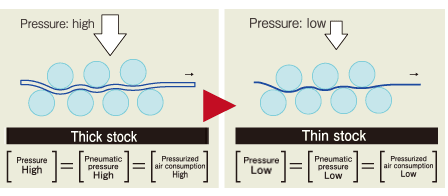

Eco Release

HF Series coil straightening-feeder machines feature an energy-saving roll lift mechanism, which provides auto-control of pneumatic cylinder pressure used in material straightening. This feature enables optimization according to stock thickness, achieving energy-savings of 30% to 50%.

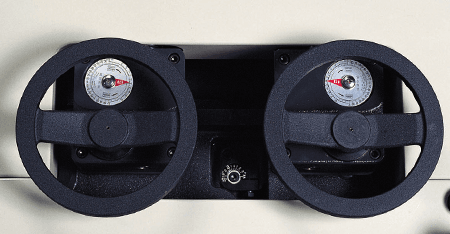

Large straightening roll adjustment wheel


The HF Series of coil line systems include a large straightening roll adjustment hand wheel. Symbols are used for the indicators, improving repeatability and permitting easy numerical setting.



Straightener port opening mechanism (Alligator Head/optional)


An opening at the top of the coil straightener makes maintenance and roll cleaning  easy.

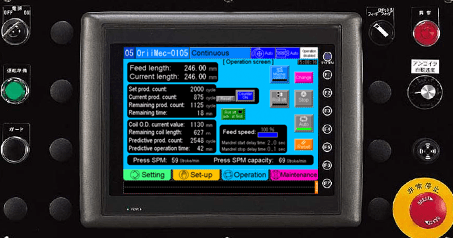

TP-CCS Allen-Bradley Controller

A wide variety of information needed for planning, operation, maintenance, etc., is uniformly controlled under the base mode of "Settings, Planning, Operation, and Maintenance." Equipped with various new operations, it is a complete operating system that responds to diversification and sophistication of merchandise and reduction of work time.

Customers can choose our original TP-CCS or Allen-Bradley Control system.

Specifications
