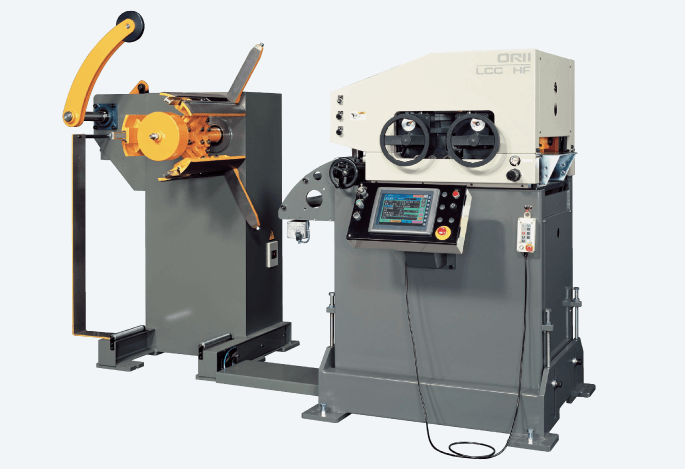

LCC HF1 Coil Straightener-Feeder
The Reliable Best Seller, LCC HF series coil line system.The surrounding work area has been increased by reducing the system's dimension as much as possible.
As standard equipment, it comes with 2 sets of entry coil width vertical guide rollers.Feed roll pressure is easily adjusted by using an air cylinder.

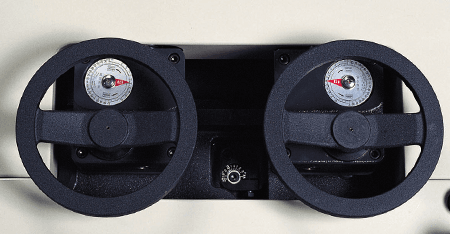

Large straightening roll adjustment wheel
The LCC HF1 coil straightener-feeder includes a large straightening roll adjustment hand wheel. Symbols are used for the indicators, improving repeatability and permitting easy numerical setting.

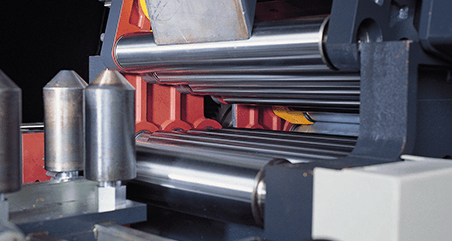

Straightener port opening mechanism (Alligator Head/optional)
Maintenance and roll cleaning is made easy by an opening at the top of the straightener.

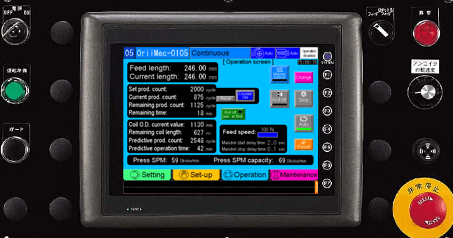

TP-CCS Allen-Bradley Controller
A wide variety of information needed for planning, operation, maintenance, etc., is uniformly controlled under the base mode of "Settings, Planning, Operation, and Maintenance." Equipped with various new operations, it is a complete operating system that responds to diversification and sophistication of merchandise and reduction of work time.
Customer can choose our original TP-CCS or Allen-Bradley Control system.

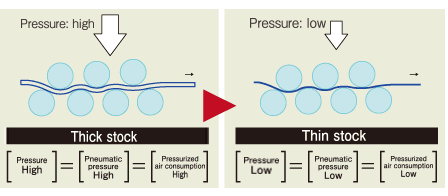

The LCC HF1 coil straightener-feeder also features an energy-saving roll lift mechanism. Auto-control of pneumatic cylinder pressure used in material straightening. This feature enables optimization according to stock thickness, achieving energy-savings of 30% to 50%.
