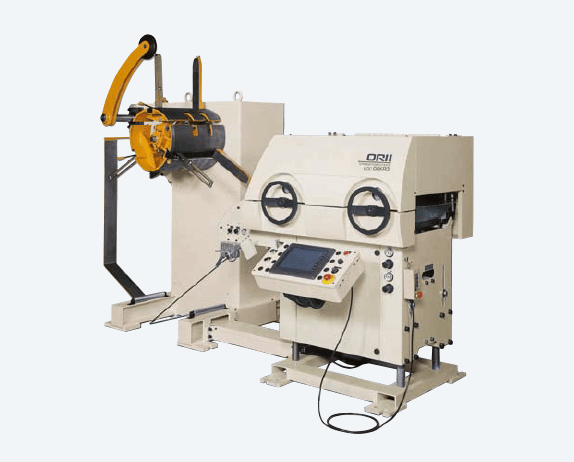

LCC KR3 Coil Straightener-Feeder
Productivity is increased by 30% (compared to conventional equipment)Release-follow Speed MAX. 120SPM
Line Speed MAX. 16m/min(52ft/min)
Stock application performance is increasedStock Width MAX. 400mm(15)
Coil Weight Mass 2,500kg(5,512lb)
11 Work Rolls
The new KR coil straightening-feeder machine's ability to provide superior flatness comes from 6 upper and 5 lower work rolls with a diameter of 48mm(1.8) each, contributing to highly precise processing.

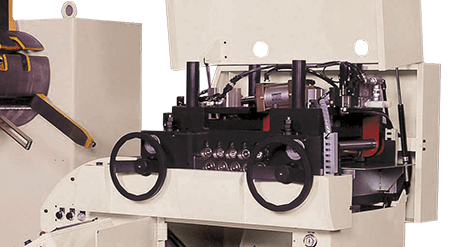

Top and Bottom Work Roll Opening
The work rolls on the new KR coil straightener-feeder machine can be reached from either the top or the bottom of the structure just by opening the cover, making cleaning the rolls much easier than on previous models. The upper door features an easy one-step button for opening and the lower door can be opened at 90 degrees.
The KR straightener-feeder's inverter system controls the variable speed of the uncoiler, causing starting and stopping functions to be gentle, so that scratches and other imperfections in the material caused by sudden stops and starts are minimized.
A wide variety of information needed for planning, operation, maintenance, etc., is uniformly controlled under the base mode of "Settings, Planning, Operation, and Maintenance." Equipped with various new operations, this complete operating system responds to diversification and sophistication of merchandise and reduction of work time.
*1In case Feeding Length exceeding Specification, MASTER CONTROL Function (Option must be provided.
*2 Pneumatic:Option in case of Pneumatic mandrel expansion is provided, refer to coil weight in ( ).
