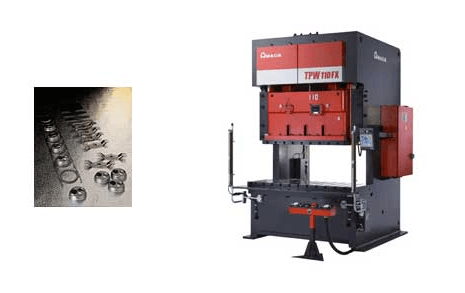

Double Crank Stamping Press TPW-FX Series
Long-selling double crank presses that meet a wide range of customer needs
The TPW-FX series stamping press has adopted a wet clutch/brake unit that has a small energy loss and positively starts and brakes even during high-speed operation.
It also has a sealed oil bath transmission that can operate maintenance free over a long period of time.
TPW-FX stamping presses provide numerous benefits, including systematization with a wealth of peripheral units and
expandability and operability from single-hit stamping, to progressive die and transfer line configurations.
Traditional AMADA wet transmission produces high torque and energy and ensures positive braking power transfer.
A TFT color touch screen is fitted as standard and provides better visibility and operability.
Eco-counter and eco-idling functions provided standard
Eco-counter function: When the production count reaches the preset count, the motor automatically enters the idle condition and draws less power.
Eco-idling function: When its standby time reaches the preset time, the motor automatically enters the idle condition and consumes less power.
Visualization of press operating conditions and maintenance information with touch screen PC. Ethernet provided standard.
