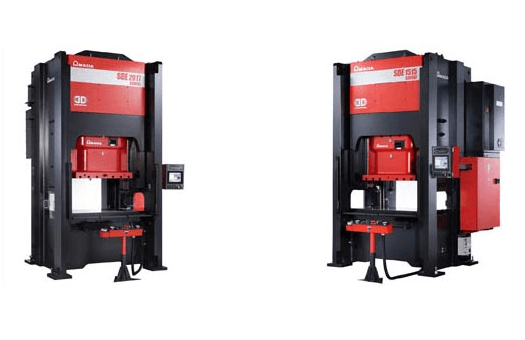

Digital AC Servo Press SDE GORIKI

High-rigidity frame structure for strengthening longitudinal rigidity

A new solid-column frame structure was adopted for our SDE Goriki servo press with a chevron-shaped structure on the upper part of the front frame and reduced cutout in the bed front plate. The longitudinal rigidity has been strengthened with the reduced expansion of the frame during stamping. With the reduction of breakthrough amount compared with conventional models, high precision, high quality manufacturing is supported.

High-rigidity guide structure for strengthening transverse rigidity

By making the slide gib into a center-gib full-guide structure, the lateral rigidity has been enhanced compared with conventional models. With the improved eccentric load resistance characteristics, stable stamping accuracy is maintained at production.

Enlarged slide area

In addition to the high-rigidity structure, enlargement of the slide area has enabled installation of multi-step dies, which meets a wide range of stamping needs, responding to the high-value added forming of plate forging and high-strength steel plates.

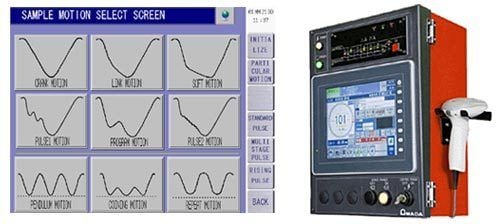

Diverse motion patterns

Diverse motion patterns are loaded for this stamping machinery line. By creating a database of various processing patterns, the optimum motion is selectable to meet each stamping type.
