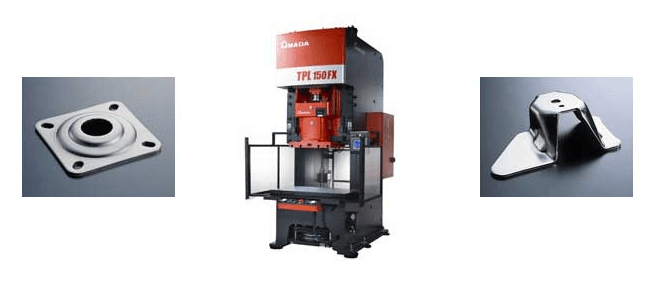

Single Link Stamping Press TPL-FX Series

Flexibility

The TPL-FX series stamping machinery's link mechanism with stroke cycle characteristics of fast approach, slow working and fast return creates parts with higher productivity and accuracy without reducing the speed of rotation.

Futurity

Visualization of press operating conditions and maintenance information with touch screen PC. Ethernet provided standard.

Functionality

A TFT color touch screen is fitted as standard and provides better visibility and operability.

Eco-counter and eco-idling functions provided standard

Eco-counter function: When the production count reaches the preset count, the motor automatically enters the idle condition and draws less power.

Eco-idling function: When its standby time reaches the preset time, the motor automatically enters the idle condition and consumes less power.

*1 Dimension from the bolster centerline to the frame edge.
*2 Bolster height and machine height does not include the height of the anti-vibration isolater.
These specifications and machinery and equipment appearance are subject to change without notice for reason of improvement.
