AFC Series Roll Feeder
The AFC series is a new type of compact NC roll feeder that provides sophisticated automation technology in an elegant form.
This series is compact yet provides high-accuracy control functions.
Compact yet provides high-accuracy control functions
- Compact design with an integrated main unit and control panel, which can be installed to the bolsters on either side of a compact press. Saves space in the office.
- Supports a maximum width of 500 mm(19) and stock thickness of 3.2 mm(0.126) despite its compact size.
- Installation resembling air feederair feeding to enable high-accuracy feeding.

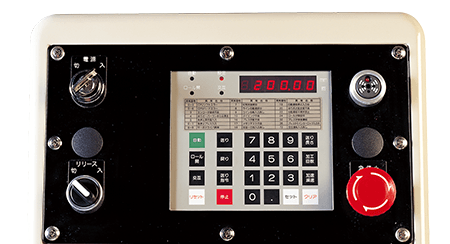

- Easy setting of feeding pitch with membrane key switch.
- Vibration-proof structure to protect the main unit and control panel from press vibrations.
- Motor with brake to prevent coiled strips from falling out after the power supply is turned off.
