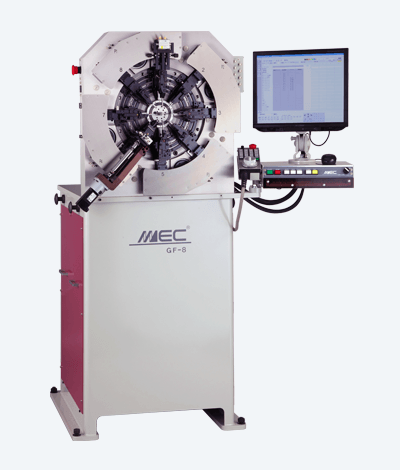

An extremely cost-effective forming machine.
Single motor twin slide control is used for the processing slides instead of a cam axis. This enables significantly shorter preparation time than a cam axis model, as the 8 processing slides can be controlled separately.
A torsion machine with 6-axis control for wire diameters of 0.2 mm to 0.8 mm

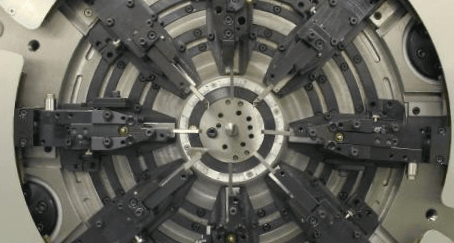

-Cam alignment is not required as the 8 slides can be numerically controlled in the program.
Achieves high-speed preparation at a reasonable price.
-Equipped with 6 standard axes: feed, quill, and 4 slides.
-Optional R servos (spinners) are provided (up to 4 can be attached).
-Optional S servos are provided for individual slide operations.
Dedicated MNO Program for Spring Production
-Easy operations for quicker preparation.
-High resolution for controlling the latest servo motors.
-Allows varied control of axes based on measurement results.
-Common program for both torsion machines and coiling machines.
-Includes a motor sensor system.

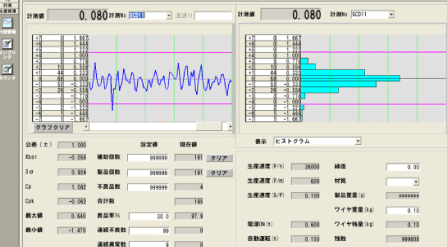

-Versatile production management screen and production data collection function.
-R servo unit
-S servo unit
-Capacitance level sensor
IS-1 shape detection unit with camera
