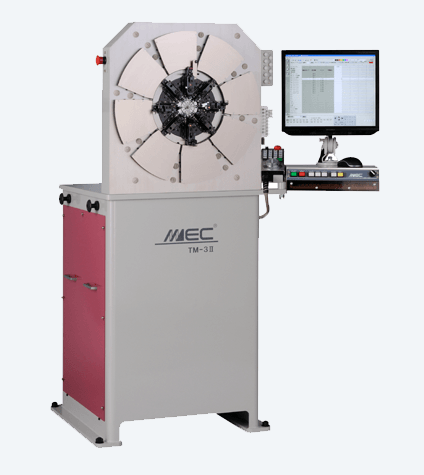

TM-3Ⅱ

Item Code: tm3II

The TM-3 has evolved into the ultimate forming machine for small diameter wire.

The TM-3II contains the optimal tool rotation system for small diameter wire to maintain a constant wire line.

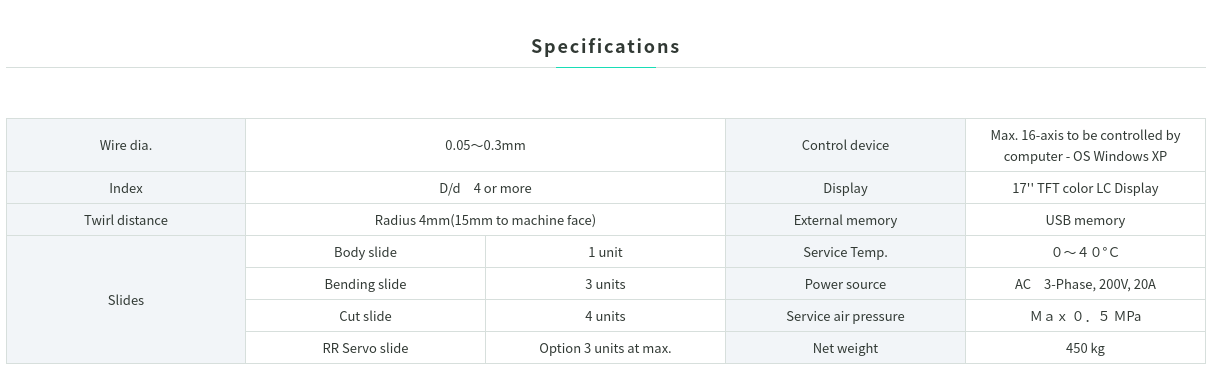

Table rotating torsion machine for wire diameters of 0.05 mm to 0.3 mm

-Does not place a burden on the wire, preventing it from twisting.

-Also suitable for special stock.

-Equipped with 11 standard axes: feed, table rotation, 8 slides, and quill rotation.

-Up to 3 optional RR servos can be added.

Dedicated MNO Program for Spring Production

-Easy operations for quicker preparation.

-High resolution for controlling the latest servo motors.

-Allows varied control of axes based on measurement results.

-Common program for both torsion machines and coiling machines.

-Includes a motor sensor system.

-Versatile production management screen and production data collection function.

We've taken the popular TM-3 to the next level

-The TM-3II is based on the popular TM-3, but with greatly improved operability and accuracy.
> Angles where tools cannot enter have been eliminated from the table circumference.
> Includes a correction function to ensure the slide does not move forward or backward when the table is rotated in the processing position.
> The feed unit has been revised to greatly improve wire line performance.

-All slides can be used as a sensor

-Motor sensor system
(can be used for measuring the bend angle, free length, touch sensor, outer diameter, etc.)

Optional Equipment

-MSD-1 sensor with servo motor

Can be used to measure the free length and outer diameter.

IS-1 shape detection unit with camera
