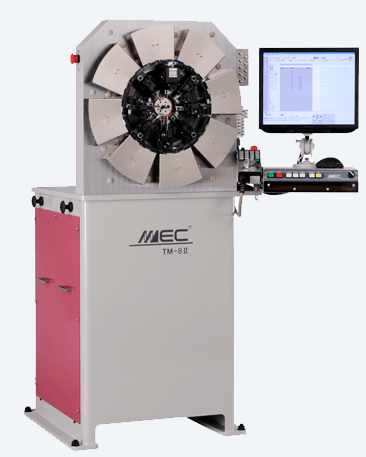

The TM-8 has evolved into the ultimate forming machine for small diameter wire.
The TM-8II contains the optimal tool rotation system for small diameter wire to maintain a constant wire line.

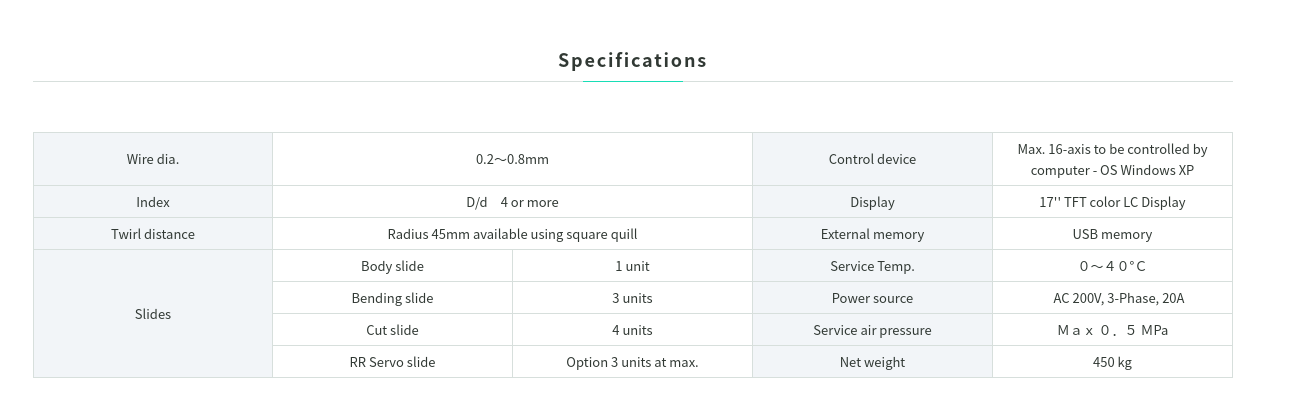

Table rotating torsion machine for wire diameters of 0.2 mm to 0.8 mm
-Does not stress the wire, preventing it from twisting.
-Also suitable for special stock.
-Equipped with 11 standard axes: feed, table rotation, 8 slides, and quill rotation.
-Up to 3 optional RR servos can be added.

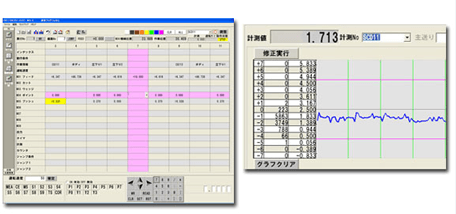

Dedicated MNO Program for Spring Production
-Easy operations for quicker preparation.
-High resolution for controlling the latest servo motors.
-Allows varied control of axes based on measurement results.
-Common program for both torsion machines and coiling machines.
-Includes a motor sensor system.
-Versatile production management screen and production data collection function.
We've taken the popular TM-8 to the next level.
-The TM-8II is based on the popular TM-8, but with greatly improved operability and accuracy.

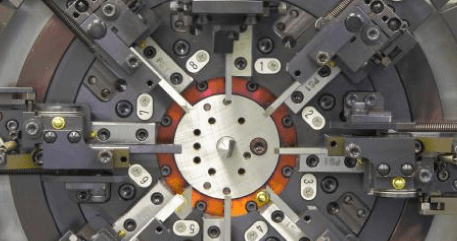

> Angles where tools cannot enter have been eliminated from the table circumference.
> Includes a correction function to ensure the slide does not move forward or backward when the table is rotated in the processing position.
> The feed unit has been revised to greatly improve wire line performance.
-All slides can be used as a sensor.
-Motor sensor system
(can be used for measuring the bend angle, free length, touch sensor, outer diameter, etc.)
-MSD-1 sensor with servo motor
Can be used to measure the free length and outer diameter.
-Slip sensor for detecting slips in wire feeding
IS-1 shape detection unit with camera
