DZ-3

Item Code: DZ-3

Ultra-thin wire springs take a new step forward.

The union of high-accuracy high-speed coil processing and freedom of bending opens up a new world of shapes.

The union of high-accuracy high-speed coil processing and bending

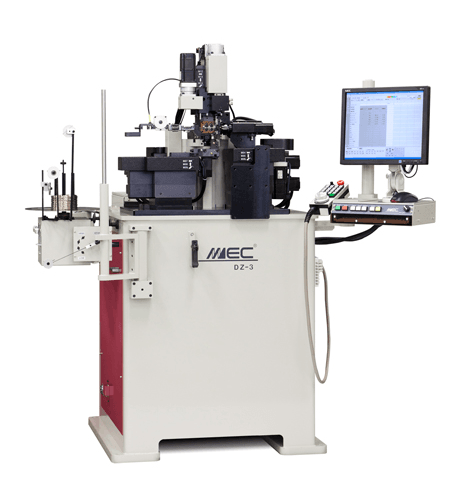

-A coiling torsion machine for wire diameters of 0.02 mm to 0.3 mm

-Has coil processing ability equivalent to that of coiling machines.

-Three 3D slides enable freedom of bending. The operations required for tool changers and R servos can be assigned to each of the three 3D slides.

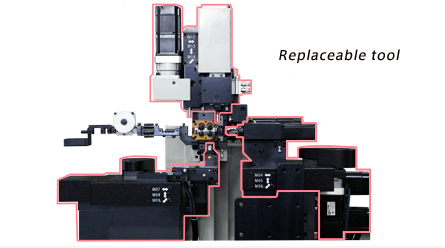

Free modular design

-The system enables different units to be attached to each of the three 3D slides. Can be replaced with various optional units.

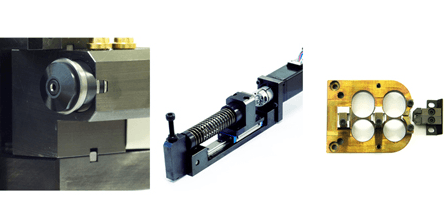

A variety of attractive optional units

-Feed pressure servo unit

-Roller servo point unit

-Ultra-thin wire guide holder



Dedicated MNO Program for Spring Production

-Easy operations for quicker preparation.

-High resolution for controlling the latest servo motors.

-Allows varied control based on measurement results, such as the pitch and diameter.

-Common program for both torsion machines and coiling machines.

-Includes a motor sensor system.

-Versatile production management screen and production data collection function.
