WH-26

Item Code: WH-26

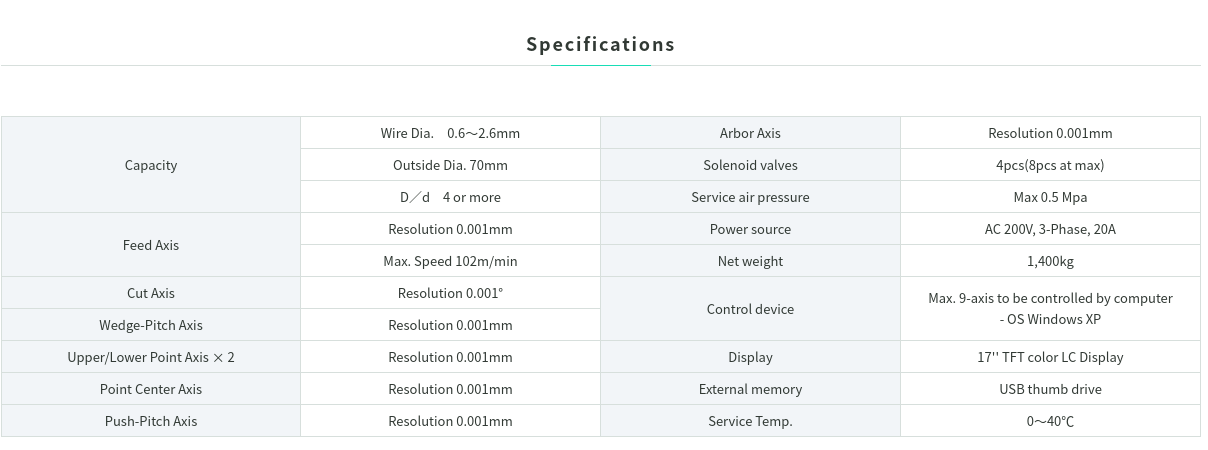

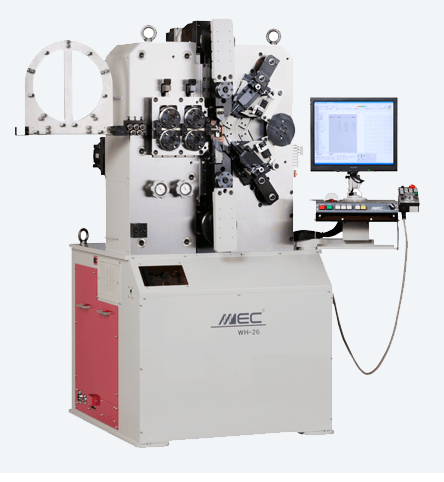

An 8-axis, 2-point coiling machine with a maximum wire diameter of 2.6 mm and excellent cost-effectiveness.

Equipped with an oscillating cut as a standard feature, along with a center base mechanism that eliminates the need for cut readjustment when the coil diameter is changed.

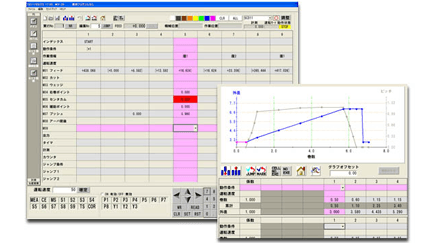

Dedicated MNO Program for Spring Production

-Easy operations for quicker preparation.

-High resolution for controlling the latest servo motors.

-Compatible with compression spring creation programs based on line graphs.

-Allows varied control based on measurement results, such as the pitch and diameter.

-Common program for both torsion machines and coiling machines.

-Includes a motor sensor system.

-Versatile production management screen and production data collection function.

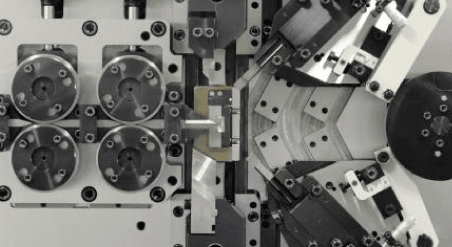

2-point coiling mechanism

-Enables the clockwise/counterclockwise direction to be switched simply by configuring a setting in the program.
Heavy sliding parts do not need to be changed during replacement.

-Can produce coils with an outer diameter of up to 70 mm, increasing the range of items that your company can produce (wire guide length: 110 mm).

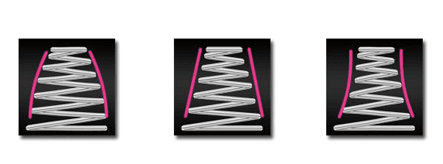

Taper synchronization constant

Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.



2-point coiling machine with a wire diameter of 0.6 to 2.6 mm

-Enables easy setup and high-accuracy, high-speed production of springs.

-The clockwise/counterclockwise direction can be switched simply by configuring a setting in the program.

-The alignment of the cut tool and core does not require readjustment after being decided once.

-One-touch switching between oscillating cut and straight cut.

-The oscillating cut bearing (oscillation) can be freely adjusted.
-An optional slip sensor is provided for detecting slips when feeding.

-Includes our newly-developed specialist MNO program for spring production, enabling simple and precise operations.



Advanced cut slide function

-The alignment of the cut tool and core does not require readjustment after being decided once.
As the cut slide and core slide are both located on the center slide, the positional relationship of the two tools does not change, meaning that readjustment is not required.

-The cutting method can be changed.
You can easily switch between oscillating cut and straight cut.

-The oscillating cut bearing (oscillation) can be adjusted.
Adjust the bearing using the eccentric pin on the slide.
