sensor PRO Safety Light Curtains (SLC) (SLD)

Item Code: WIELAND SAFETY Light Curtains
sensor PRO Safety Light Curtains (SLC)http://www.wieland-safety.com/feature/sensors/safety-light-curtains

  SLC series safety light curtains are ideally suited to protecting operators from dangerous areas or as an access control against unauthorized trespassing.

Wieland  SLC light curtains are available in a wide range of industry standard resolution, heights and safety categories. They can be connected to unshielded cables up to 100 meters long. The light curtain transmitter and receiver are sold separately. The receiver is offered in two versions: standard (SLC-xST...) and select (SLC-xSL...).
  • Standard offers basic functionality and is intended to be monitored by an external safety relay or programmable safety controller. It also includes LED lights for diagnostics.
  • Select offers the additional functionality of a manual/automatic reset and external device monitoring (EDM). Therefore, it can be used without an external safety controller. In addition, the select series include a 7 segment LED for faster diagnostic and shorter setup or troubleshooting. Further, the 7 segment LED can be used as a 3 zone alignment indicator which reduces installation time.

The SLC light curtains are supplied with sliding T-Nuts for mounting. Wieland also offers an extensive range of accessories for mounting, aligning, protecting and muting purposes.

sensor PRO Safety Light Curtains (SLC)  http://www.wieland-safety.com/feature/sensors/light-grids

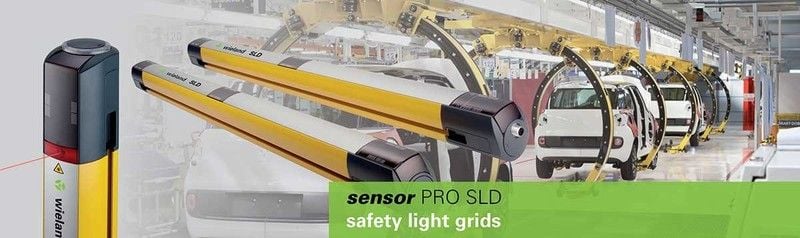

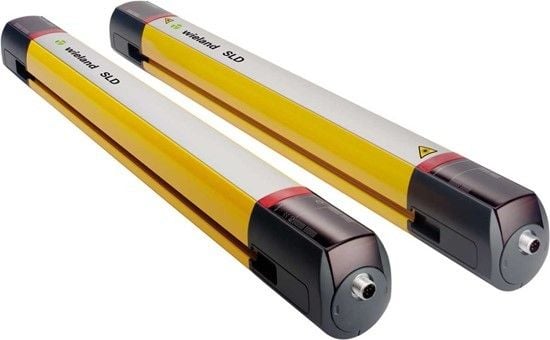

SLD series safety light grids are ideally suited for perimeter guarding, protecting operators from accessing dangerous areas while the machine is in operation, or as an access control against unauthorized trespassing.

Wieland SLD light grids are available in 2, 3 and 4 beam configurations with ranges up to 70 meters. They can be connected to shielded cables up to 100 meters long. An optional integrated laser alignment tool also ensures that rapid alignment is always possible.

The transmitter and receiver are sold separately. The receivers are offered in two versions: standard (SLD-4ST...) and select (SLC-4SL...).
  • Standard offers basic functionality and is intended to be monitored by an external safety relay or programmable safety controller. It also includes LED lights for diagnostics.
  • Select offers the additional functionality of a manual/automatic reset and external device monitoring (EDM). Therefore, it can be used without an external safety controller.

Tranceivers versions (also called universal) are also available in 2 and 3 beam configurations. In this case, only one device requires wiring. The mating device is simply a mirror column. This reduces the installation complexity by eliminating the need for an additional cable.

The SLD light grids are supplied with sliding T-Nuts for mounting. Wieland also offers an extensive range of accessories for mounting, aligning, protecting and muting purposes.
