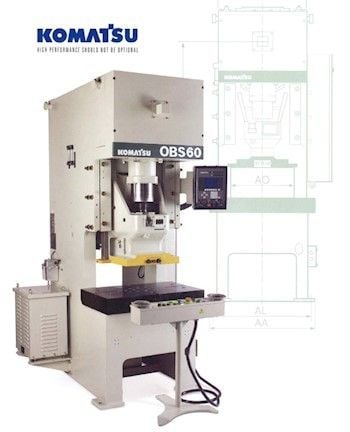

OBS 60 KOMATSU

Item Code: OBS 60
The OBS Gap Frame Press:
Designed for Superior Reliability and Consistency
  • Ideal for progressive or manual die operations
  • Superior deflection characteristics
  • Increased bearing slide guiding area
  • Faster stopping times with actual digital display
  • Higher production rates in single stroke mode
  • Higher counter balance capacity
  • Improved part quality
  • Improved die life

The Komatsu Warranty

When a press is desgined as a system, it should be expected to perform as a system without routine tear downs for wear items (the conventional "weak link" in other presses). It's as simple as 1-2-3...Every Komatsu OBS press comes with a full 1-Year parts and labor warranty on everything that moves or glows, an extended 2-Year parts warranty, and a 3-Year frame warranty! Unlike other manufacturers, there is no hourly limit - your press is guaranteed to perform 3 shifts a day, 7 days a week, 365 days a year. With Komatsu systems engineering it's possible to extract the full potential from your press, and the full revenue from every job.

Tech Specifications

Main Drive                        Komatsu uses an eccentric shaft as the main drive shaft
Clutch and Brake              A wet, multiple disc clutch and brake
Plunger Guide System     Size-specific plunger guide is engineered for each different press model



Optional Features

Electronic Load Monitor (2-channel)  Load monitors are available to continuously monitor loads in all press operations, including blanking, bending, drawing, etc. The monitor also detects die overloads and underloads duing operation. In addition, balanced die load is achieved by measuring the off-center-load, thus extending press and die life.

  • Emergency Stop Receptacle
  • Die Cushions
  • Vibration Isolation Pad
  • Slide Knockout (mechanical)
  • Quick Die Change Equipment
    • Hydraulic die clamps available in either lever or cylinder type
    • Hydraulic die lifters
    • Mechanical draw out rails (note: re-machining of "T" slots may be required)
  • Presence-Sensing Safety Devices
  • Additional set of 4 Electronic Rotary Cams
  • Air Ejector with Cam
  • Adjustable Hydraulic Overload
  • Quick Die Change Interface
  • Coil Line Interface
  • Increased Job Storage Memory
A Higher level of Standard Equipment For Increased Performance
  • Heavy plate, rigid frame and construction
  • U.S. standard bolster and slide machining
  • Pneumatic counterbalance
  • Single-piece, heavy duty cast steel slide
  • Precision plunger guide design
  • Push-button controlled, motorized slide adjustment
  • Eccentric shaft main drive
  • Precision oil-lubricated long 6-point gibs
  • Hardened and ground helical gears
  • High-efficiency AC inverter drive
  • High-torque wet clutch and brake
  • Quick-responding, dependable hydraulic overload protector
  • Shock resistant, pendant-mounted control
  • T-stand for easy set-up and operation
  • 10 Job memory
  • Safety block with interlock

Product Download:  OBS 33 Series Catalog
