MC, MCP & MCL Series

Item Code: MC MCP MCL S

These compact presses are optimized for a wide range of small- to medium-sized parts. Due to the drive-related slide kinematics, the MCL Series, in particular, is ideal for drawn parts. The reduced forming speed increases the part quality and protects the press and dies.

Description

Overview

Type: semi h-frame presses
Press Capacity: 80-800 tons
Part Size: small to medium
Slide Kinematics: crank motion (MC; MCP) or link motion (MCL)
Application: blanking, stamping, bending, embossing & drawing

Features & Benefits

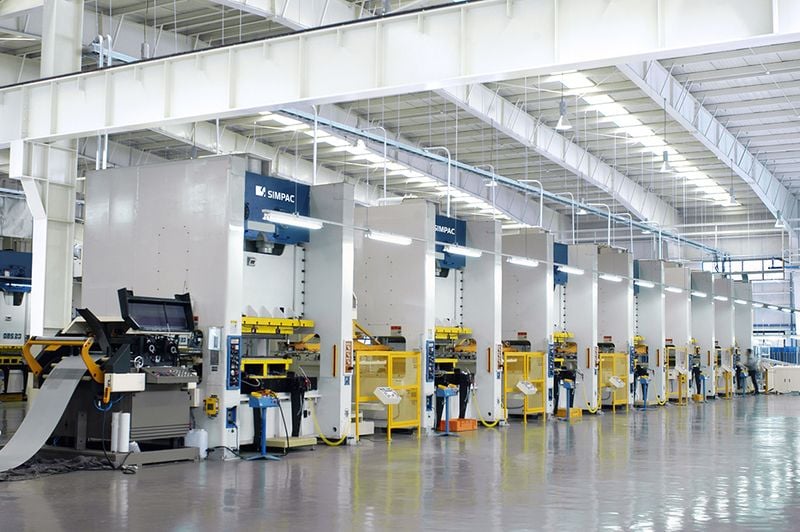

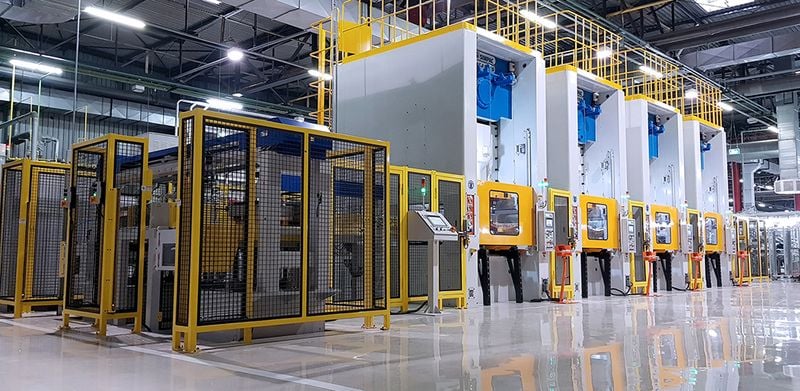

Flexible installation options as a single press in progressive or transfer mode or as a fully automated press line.
The compact design requires little floorspace and no foundation for presses below 600 tons.
The very solid, low-stress annealed press bodies are FEM-calculated and optimized by “hot-spot analysis” areas subject to higher loads.
Motor, clutch/brake unit, lubrication system, and controls are of Korean origin and guarantee a long service life, maximum dynamics, and a supply of spare parts.
When it comes to higher-strength materials, the slide guiding system ensures a high level of tilting rigidity and reduces the cutting impact during the cut through process.

Technical Specifications

MC1 Series

Model		MC1-110	MC1-150	MC1-200	MC1-250	MC1-300	MC1-400	MC1-500
Press Capacity	ton	110	150	200	250	300	400	500
Rated Tonnage Point	mm	6	6	6	6	7	7	7
Stroke Rate	spm	50-100	45-90	35-70	35-60	20-40	20-35	20-35
Stroke Length	mm	110	130	160	200	250	280	350
Slide Adjustment	mm	100	100	120	120	120	120	120
Die Height	mm	350	400	450	500	500	550	600
Slide Dimension	mm	900x550	1000x650	1150x750	1250x750	1500x900	1650x1000	1800x1100
Bolster Dimension	mm	1000x700	1150x750	1300x850	1400x950	1600x1000	1800x1100	1950x1200
Overall Height	mm	3100	3300	3705	4020	4575	4730	5650
Die Cushion Capacity	ton	10	14	14	14	14	14	15
Die Cushion Stroke	mm	80	100	100	100	130	130	130
Die Cushion Pad Area	mm	540x340	640x420	640x420	640x420	860x460	860x460	860x460

* SDAU = slide stroke down, adjustment up | ST = standard | HS = high-speed | LS = long stroke | Subject to technical modifications

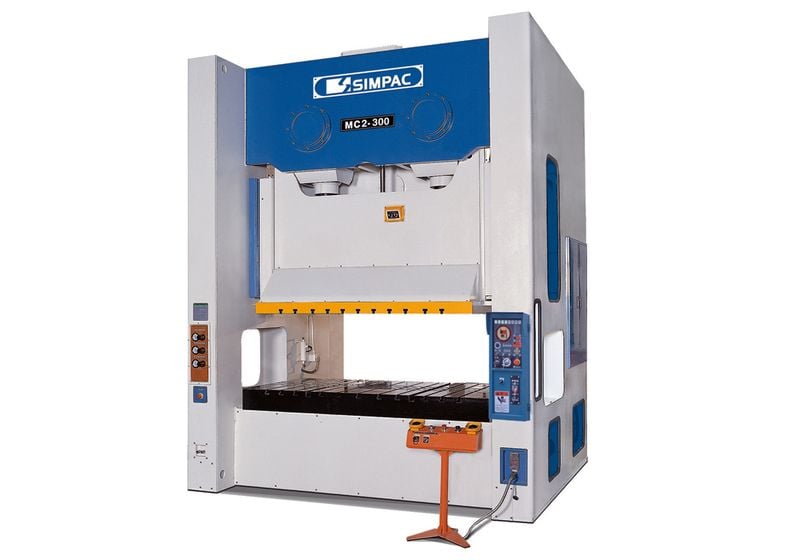

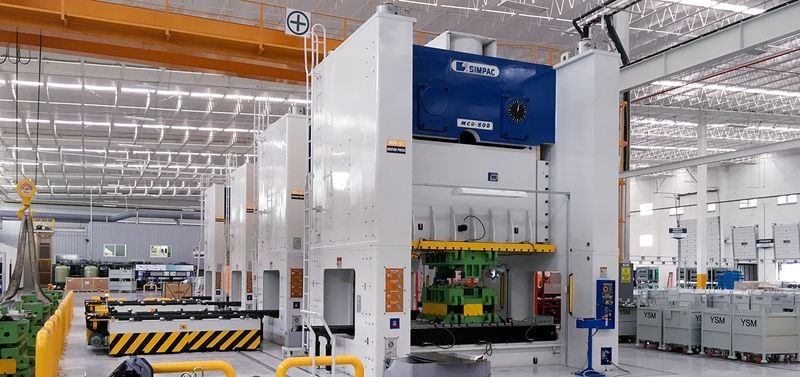

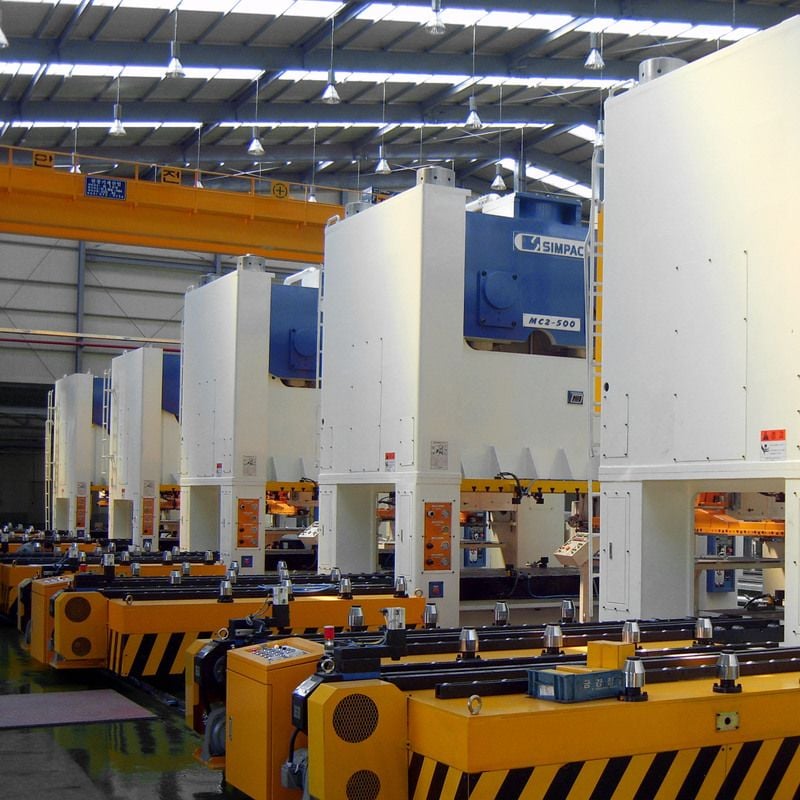

MC2 Series

Model		MC2-200	MC2-250	MC2-300	MC2-350	MC2-400	MC2-500	MC2-600	MC2-800
Press Capacity	ton	200	250	300	350	400	500	600	800
Rated Tonnage Point	mm	7	7	6	6	7	7	7	7
Stroke Rate	spm	25-80	25-80	25-80	15-70	15-70	15-60	15-60	15-50
Stroke Length	mm	250	280	300	300	350	350	350	350
Slide Adjustment	mm	110	120	120	120	120	120	120	120
Die Height	mm	500	550	550	600	600	650	700	700
Slide Dimension	mm	1850x650	2400x1000	2600x1000	2600x1200	2700x1300	3000x1300	3000x1400	3200x1400
Bolster Dimension	mm	2150x850	2500x1100	2700x1100	2700x1200	2800x1400	3000x1400	3000x1500	3200x1500
Overall Height	mm	3775	4390	4545	4595	5105	5500	5860	6300
Die Cushion Capacity	ton	22	22	22	22	30	30	30	30
Die Cushion Stroke	mm	100	110	110	110	140	140	140	140
Die Cushion Pad Area	mm	1000x400	1590x500	1590x500	1590x500	1750x500	1750x500	1750x500	1750x500

* SDAU = slide stroke down, adjustment up | ST = standard | HS = high-speed | LS = long stroke | Subject to technical modifications

MCP2 Series

Model		MCP2-400	MCP2-600	MCP2-800
Press Capacity	ton	400	600	800
Rated Tonnage Point	mm	6	6	6
Stroke Rate	spm	30-70	25-60	20-50
Stroke Length	mm	300	350	350
Slide Adjustment	mm	200	250	250
Die Height *	mm	600	800	800
Slide Dimension	mm	3000x1400	4000x1500	4000x1500
Bolster Dimension	mm	3000x1400	4000x1500	4000x1500
Main Motor (AC)	KW	75	90	90
Counterbalancing Capacity	ton (MPa)	5 (0.7)	7 (0.7)	7 (0.7)
Frame Combined		Monobloc	Tie Rod	Tie Rod
Frame Deflection	mm/m	1/8000	1/8000	1/8000
Anti-vibration Device		Spring & Damper	Spring & Damper	Spring & Damper
Pit		Necessary	Necessary	Necessary

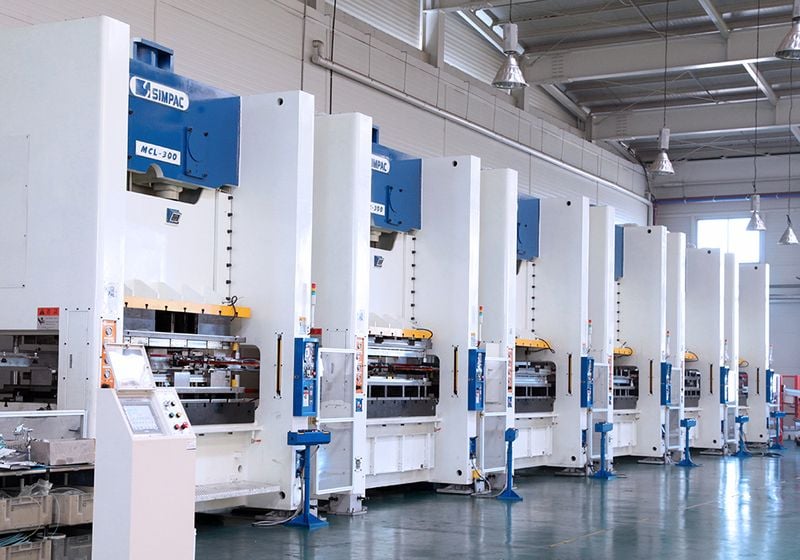

MCL1 Series

Model		MCL1-80	MCL1-110	MCL1-150	MCL1-200	MCL1-250	MCL1-300	MCL1-400	MCL1-600
Press Capacity	ton	80	110	150	200	250	300	400	600
Rated Tonnage Point	mm	4	6	6	6	6	7	8	8
Stroke Rate	spm	55-110	50-100	40-85	35-70	35-60	20-40	20-40	15-50
Stroke Length	mm	100	110	130	160	200	250	300	350
Slide Adjustment	mm	80	100	100	120	120	120	120	120
Die Height	mm	320	370	400	450	470	500	500	500
Slide Dimension	mm	750x500	900x550	1000x650	1150x750	1250x750	1500x900	1650x1000	1950x1200
Bolster Dimension	mm	900x600	1000x700	1150x750	1300x850	1400x950	1600x1000	1800x1100	2100x1300
Overall Height	mm	2250	2400	2750	3050	3100	3100	3100	3700
Die Cushion Capacity	ton	8	10	14	14	14	15	15	15
Die Cushion Stroke	mm	80	80	100	100	100	130	130	130
Die Cushion Pad Area	mm	480x300	540x340	640x420	640x420	640x420	640x420	860x460	860x460

* SDAU = slide stroke down, adjustment up | ST = standard | HS = high-speed | LS = long stroke | Subject to technical modifications

MCL2 Series

Model		MCL2-200 (ST \| HS)	MCL2-250 (ST \| HS)	MCL2-300	MCL2-400	MCL2-500	MCL2-600	MCL2-800
Press Capacity	ton	200	250	300	400	500	600	800
Rated Tonnage Point	mm	4 \| 7	4 \| 7	6	7	7	7	7
Stroke Rate	spm	35-70 \| 25-45	30-55 \| 20-40	20-40	20-40	20-30	15-50	15-40
Stroke Length	mm	150 \| 250	170 \| 250	250	300	350	350	350
Slide Adjustment	mm	120	120	120	120	120	120	120
Die Height	mm	450 \| 500	450 \| 550	600	700	700	700	700
Slide Dimension	mm	1850x650	2400x1000	2600x1000	2700x1300	2900x1300	3000x1400	3200x1400
Bolster Dimension	mm	2150x850	2500x1100	2700x1100	2800x1400	3000x1400	3000x1500	3000x1500
Overall Height	mm	3950 \| 4210	4180 \| 4390	4560	5120	5550	5910	6300
Die Cushion Capacity	ton	22	22	22	30	30	30	30
Die Cushion Stroke	mm	100	110	110	110	140	140	140
Die Cushion Pad Area	mm	1000x400	1590x500	1590x500	1590x500	1750x500	1750x500	1750x500
