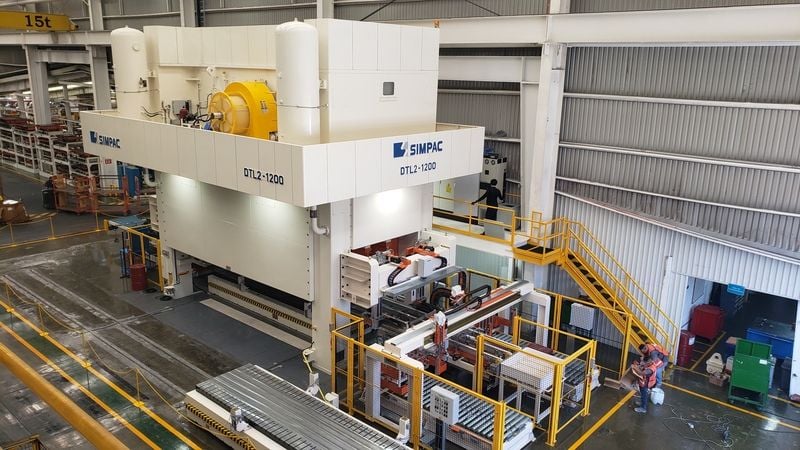

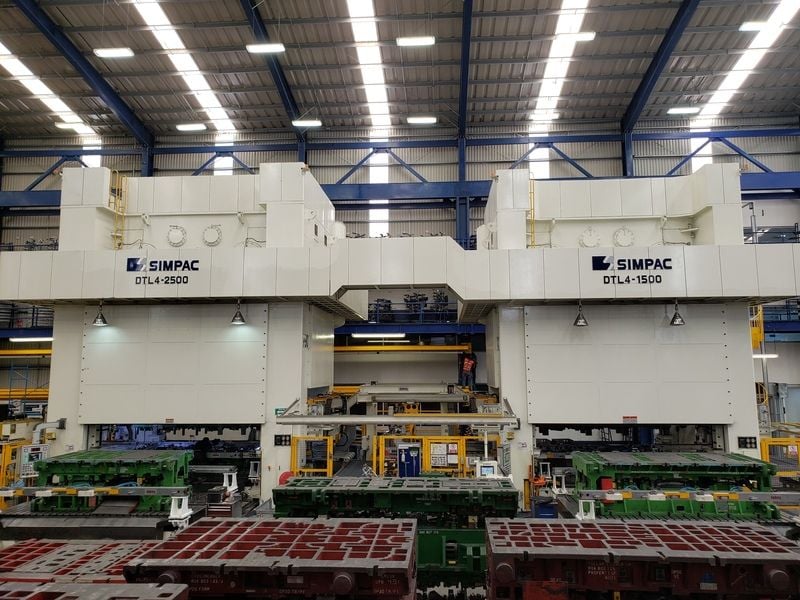

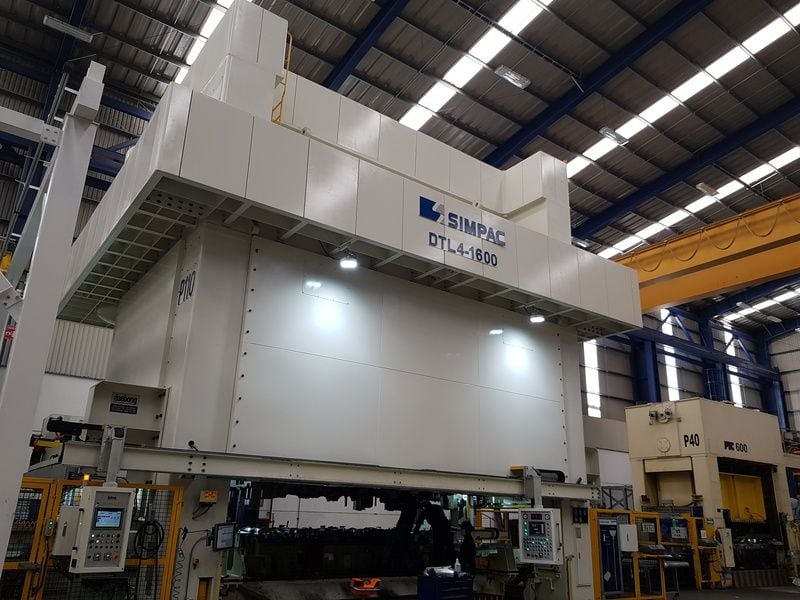

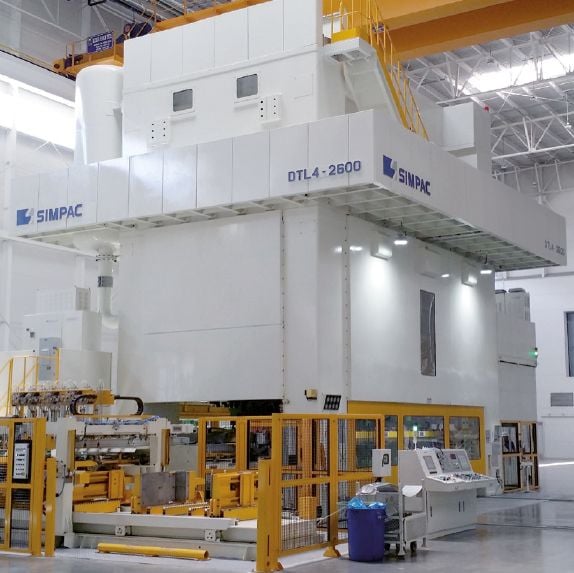

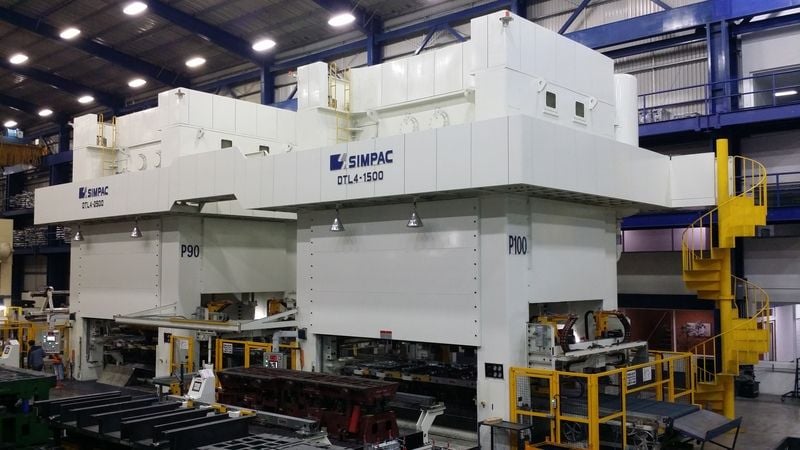

DL & DTL Series

Overview

• Type: forming, link presses
• Press Capacity: 600-3,375 tons
• Part Size: medium to large
• Slide Kinematics: link
• Application: stamping, drawing & forming

The modified slide kinematics of the DL and DTL Series is ideal for parts requiring a higher drawing depth. The Series can be installed as a single press in progressive or transfer mode or as a fully automated press line.

Features & Benefits

• Proven and continuously optimized technology for reliable production processes.
• The link drive of the DL and DTL Series reduces the slide velocity during the forming phase, providing the perfect solution for parts with higher drawing depths.
• The solid, low-stress annealed press bodies are FEM-calculated and optimized by “hot-spot analysis” areas subject to higher loads.
• Presses in tie rod design are connected to a rigid frame via hydraulically pre-stressed tie rods.
• The outside located pressure points, as well as an 8-fold slide guiding system, absorb off-center loads, spare press, and dies to ensure consistent part quality.
• The automatic centralized lubrication system increases productivity and availability.
• Availability of an extensive range of optional equipment (i.e., die cushions, pneumatic ejectors, or moving bolsters for a faster die change).

Technical Specifications

DL2P Series

* SDAU = slide stroke down, adjustment up | 2P = 2-point design | 4P = 4-point design | Subject to technical modifications

DL4P Series

* SDAU = slide stroke down, adjustment up | 2P = 2-point design | 4P = 4-point design | Subject to technical modifications

DTL Series

* SDAU = slide stroke down, adjustment up | 2P = 2-point design | 4P = 4-point design | Subject to technical modifications
