DE & DTE Series

Overview

• Type: forming, eccentric presses
• Press Capacity: 300-3,375 tons
• Part Size: medium to large
• Slide Kinematics: mechanical
• Application: cutting, blanking, bending, punching, stamping, embossing & forming

The mechanical drive of the DE and DTE Series is ideal for flat and semi-flat parts due to its sinusoidal slide motion curve. The Series can be installed as a single press in progressive or transfer mode or as a fully automated press line.

Features & Benefits

• Proven and continuously optimized technology for reliable production processes.
• The mechanical drive of the DE and DTE Series is ideal for cutting, punching, bending, and stamping operations.
• The solid, low-stress annealed press bodies are FEM-calculated and optimized by “hot-spot analysis” areas subject to higher loads.
• Presses in tie rod design are connected to a rigid frame via hydraulically pre-stressed tie rods.
• The outside located pressure points, as well as an 8-fold slide guiding system, absorb off-center loads, spare press, and dies to ensure consistent part quality.
• The automatic centralized lubrication system increases productivity and availability.
• Availability of an extensive range of optional equipment (i.e., die cushions, pneumatic ejectors, or moving bolsters for a faster die change).

Technical Specifications

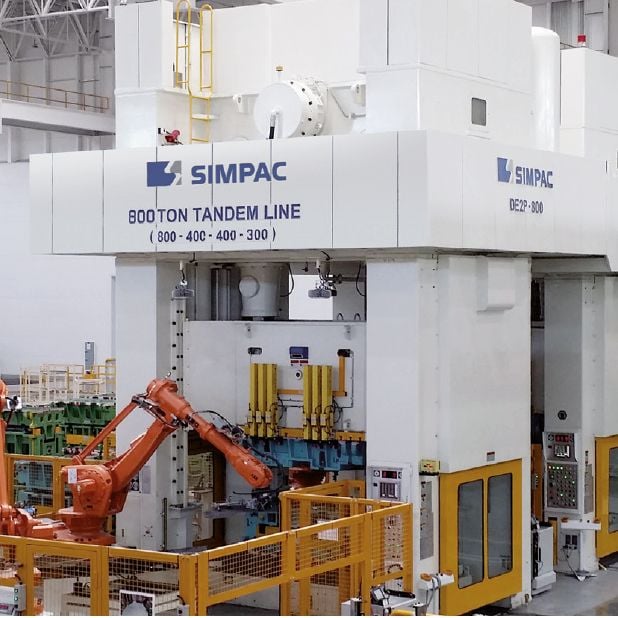

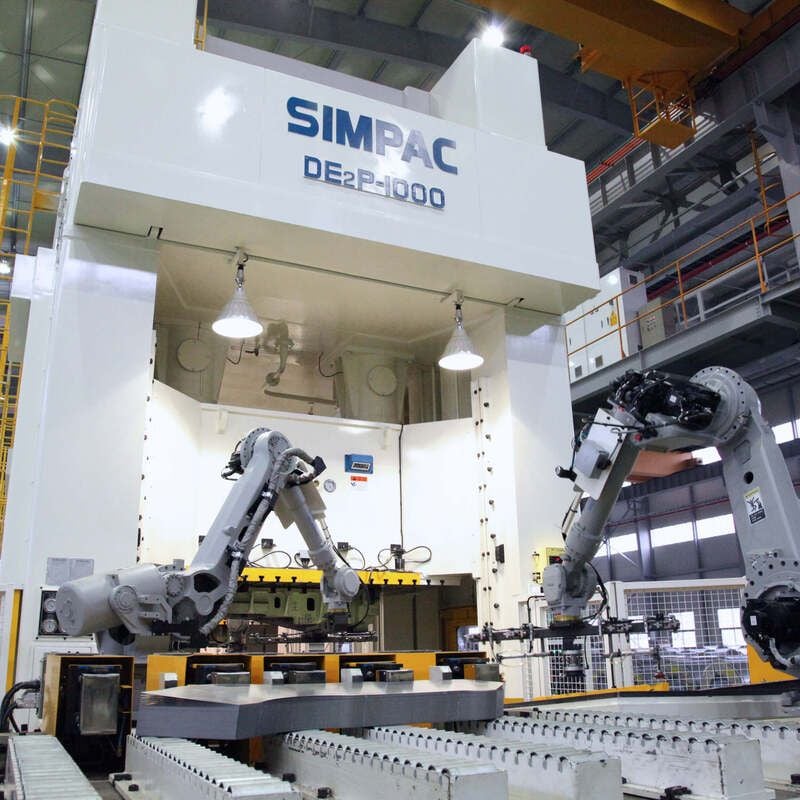

DE2P Series

* SDAU = slide stroke down, adjustment up | 2P = 2-point design | 4P = 4-point design | Subject to technical modifications

DE4P Series

* SDAU = slide stroke down, adjustment up | 2P = 2-point design | 4P = 4-point design | Subject to technical modifications

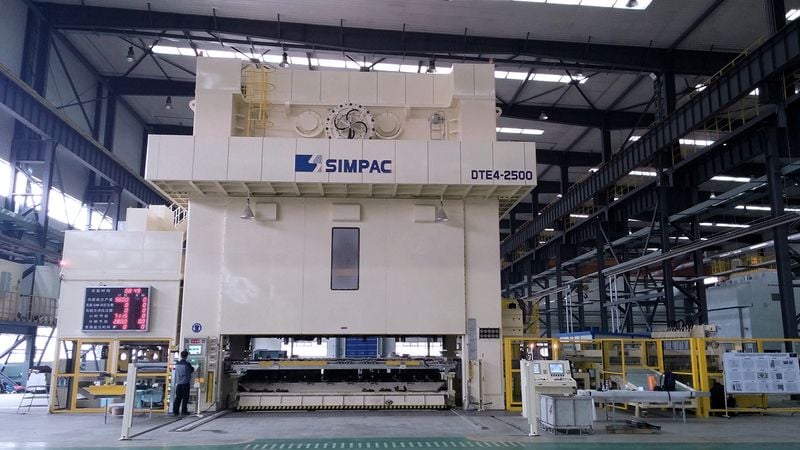

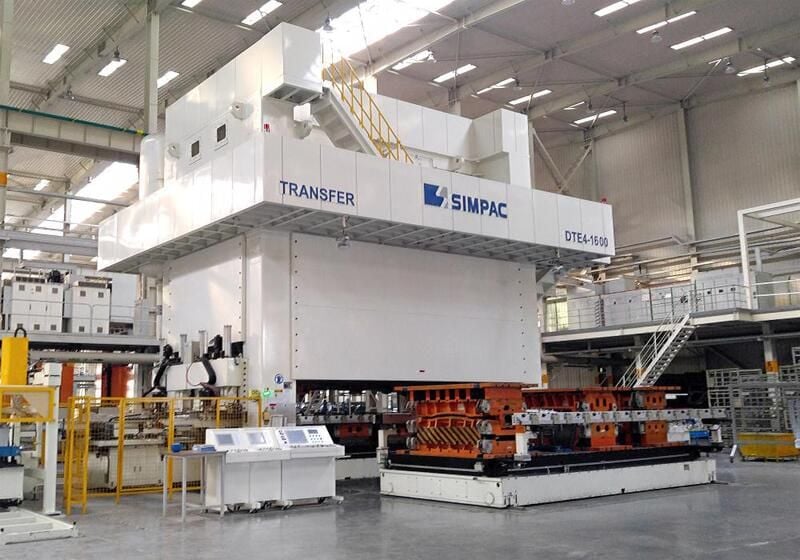

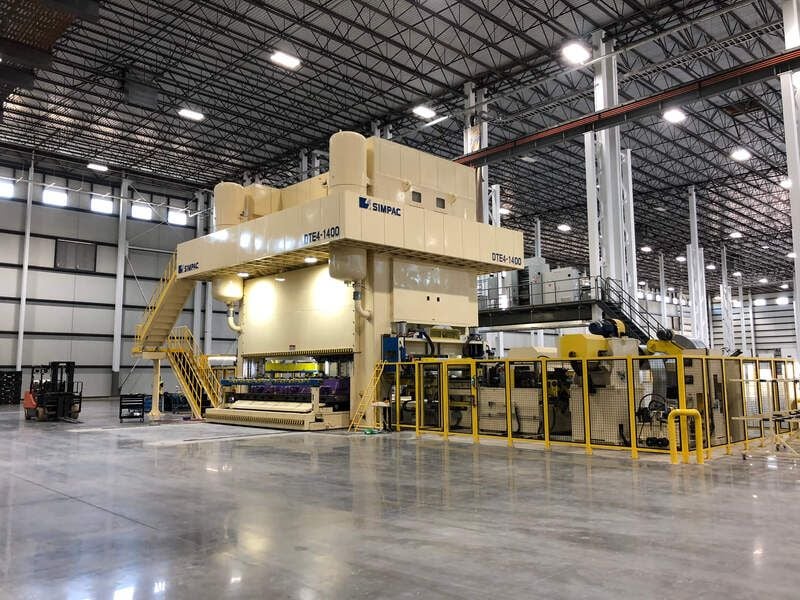

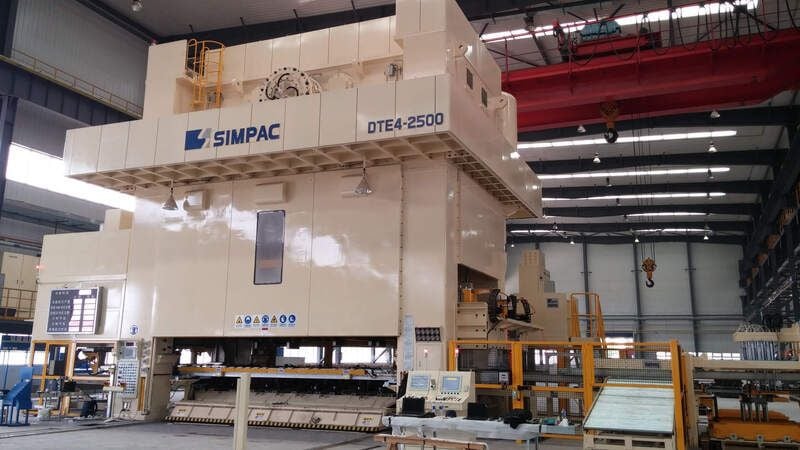

DTE Series

* SDAU = slide stroke down, adjustment up | ST = standard | HS = high-speed | LS = long stroke | Subject to technical modifications
