ULTRATOUCH BUTTONS BY PINNACLE SYSTEMS

UL-101-2P
One UltraTouch moduleDirect replacement into most existing operator stations into existing mechanical palm buttons space and screw configurations. Excellent for retrofit projects.



Ergonomic Palm Buttons ul_102_2p

One UltraTouch module with a complete self-contained NEMA 12 enclosure. Dimensional configuration of NEMA 12 enclosure of 3.50" (89mm) x 6.375" (162mm) x 2.95" (75mm). Excellent for installations when the UltraTouch system must be mounted individually due to space limitations.



Ergonomic Palm Buttons ul_301_2p

Two UltraTouch modules mounted on a NEMA 12 operator station run bar. The UltraTouch modules are mounted in accordance to OSHA, ANSI, and CSA standards in regards to run button spacing.



Ergonomic Palm Buttons ul_401_2p

Two UltraTouch modules mounted on a NEMA 12 operator station run bar with a red mushroom emergency stop button located in the center. Excellent for installations requiring an emergency stop button for the operator. All the modules are mounted in accordance to OSHA, ANSI, and CSA standards in regards to run button spacing.

Ergonomic Palm Buttons ul_501_2p

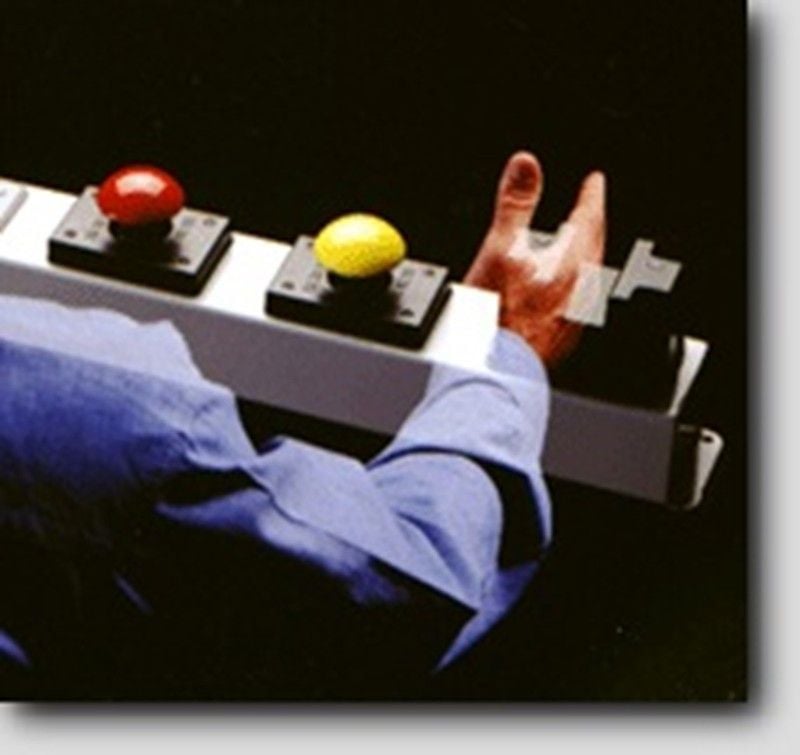

Two UltraTouch modules mounted on a NEMA 12 operator station run bar with a red mushroom emergency stop button located in the center and a yellow mushroom top button located off center. Ideal for the metal stamping/metal fabrication industry. All the modules are mounted in accordance to OSHA, ANSI, and CSA standards in regards to run button spacing.

Ergonomic Palm Buttons ul_601 (Specify AC or DC as suffix to Model Number)

Anti-tie down/concurrent operation module. This assembly supplies the control that, when added to two UltraTouch devices, assures that the operator occupies both hands and must initiate both UltraTouch devices within a preset period of time. The anti-tie down/concurrent module comes in a NEMA 12 enclosure and can be added to any of the styles. NEMA 12 enclosure 6" (152mm) x 8" (203mm) x 6" (152mm).  This is required on all machines that do not have this capability in the machine control. (Available without control box. Part #UL-601-NB module. Requires 4" (102mm) x 5" (127mm) space.)

Ergonomic Palm Buttons ul_8500

The Model 8500 adjustable pedestal mount can be utilized for mounting the operator stations or the UltraTouch modules off the machine. These adjustable height pedestals are painted OSHA yellow and are of heavy angle construction with a floor mounting plate that can be lagged to the floor. The adjustable height feature assures the correct ergonomic position for various size operators. This will help control stretching and pulling strains of the operator.
