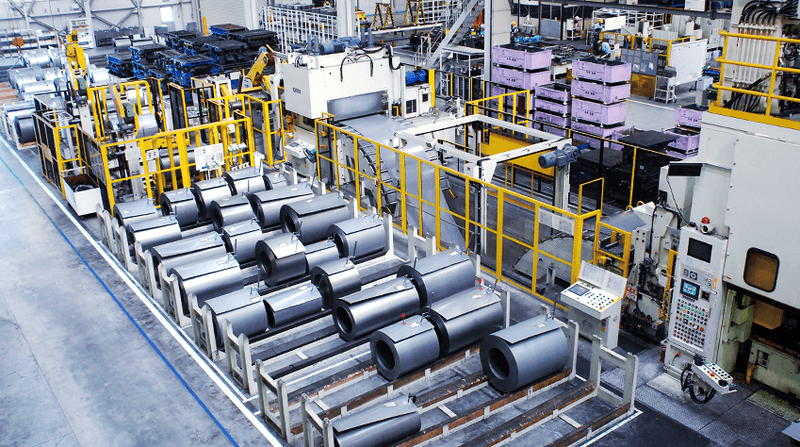

Large-Scale Coil Feeder Line
stock widths up to 1,900 mm (74) and stock thicknesses up to 6.0 mm (0.236).It also includes, hands free coil setting, shearing capabilities, and rewinding of unwound stock.
In addition to blanking presses, this technology is utilized in cut to length lines,and is well received by customers not only in Japan but around the world.

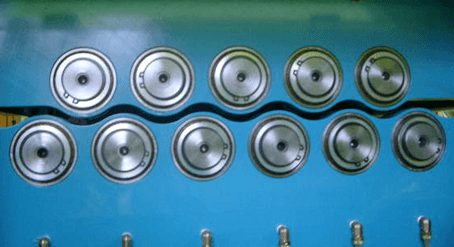

This product supports a wide range of today's hightensile steel that are experiencing increasing demand. Straightening is performed automatically (by job recipe), a wide variety of motor capacities are available to accurately meet customer needs for coil flatness. Roll top opening mechanism (up to 300 mm(11) opening) is provided as a standard feature to improve productivity for maintenance.

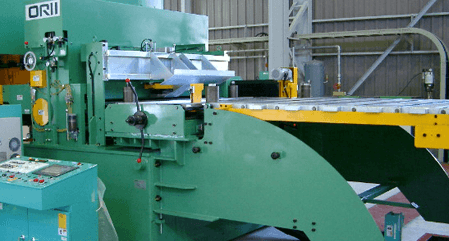

For this product, we drew on our extensive track record and experience to provide optimal feed control. A measure roll (provided as a standard feature) also enables high feed accuracy. (PLC manufactured by Mitsubishi Electric; motor manufactured by Yaskawa Electric.)
Hands Free (loading, peeling, threading)
An automatic coil threading function is included as a standard feature for the processes from loading to threading to meet customer needs for rationalization and reduction of preparation time.
Other standard items
A hydraulic crop shear is provided as a standard feature, and a double skid car enables incomplete coils to be unloaded, allowing preparation for the next coil to be rationalized. A movable end feeder is also provided as a standard feature to enable coils to be used right up to the ends.
