DOWN ACTING HYDRAULIC PRESSES DUAL CYLINDER

Item Code: HS-PRSDB-06

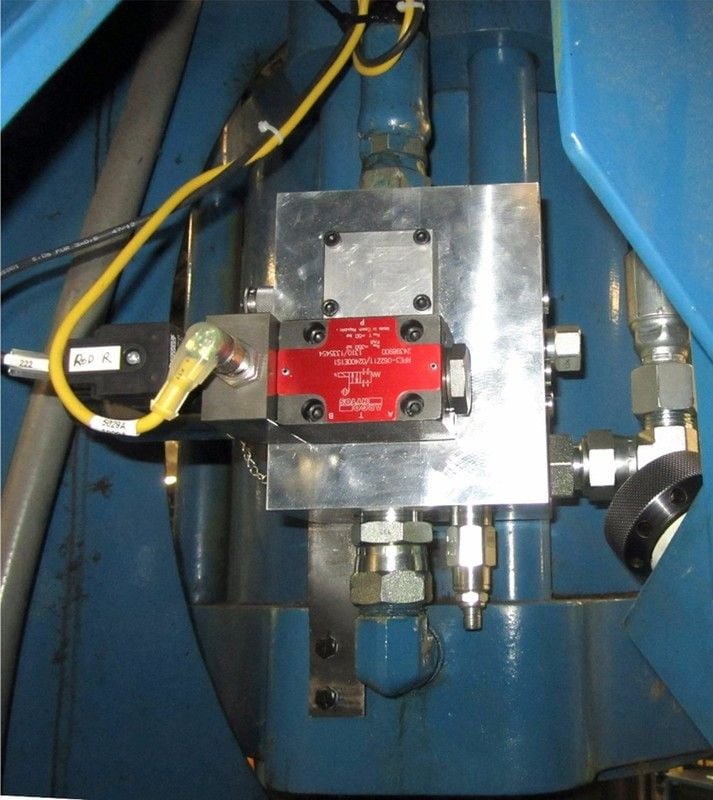

HYDRAULIC SAFETY MANIFOLD ASSEMBLY

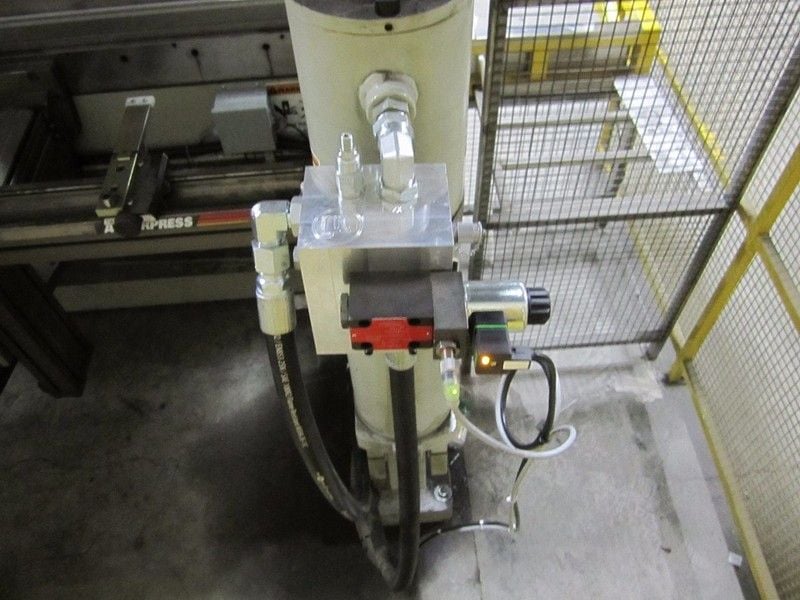

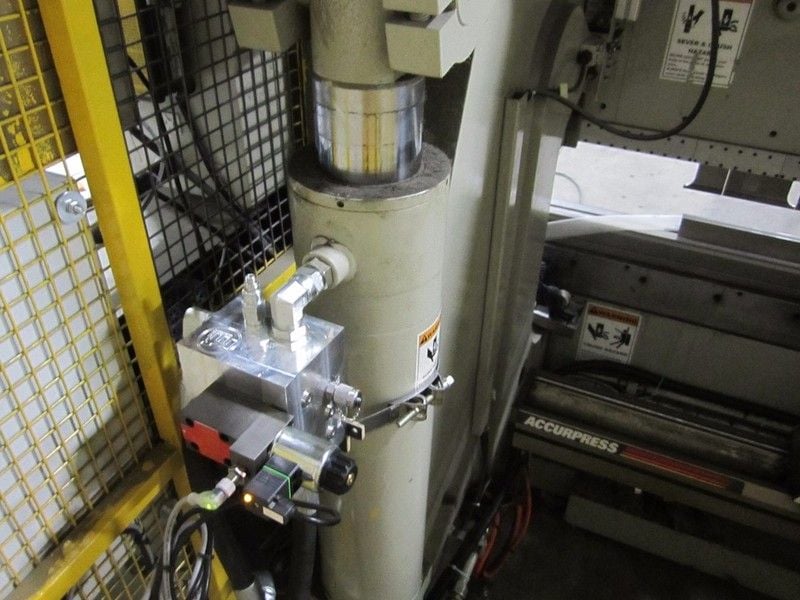

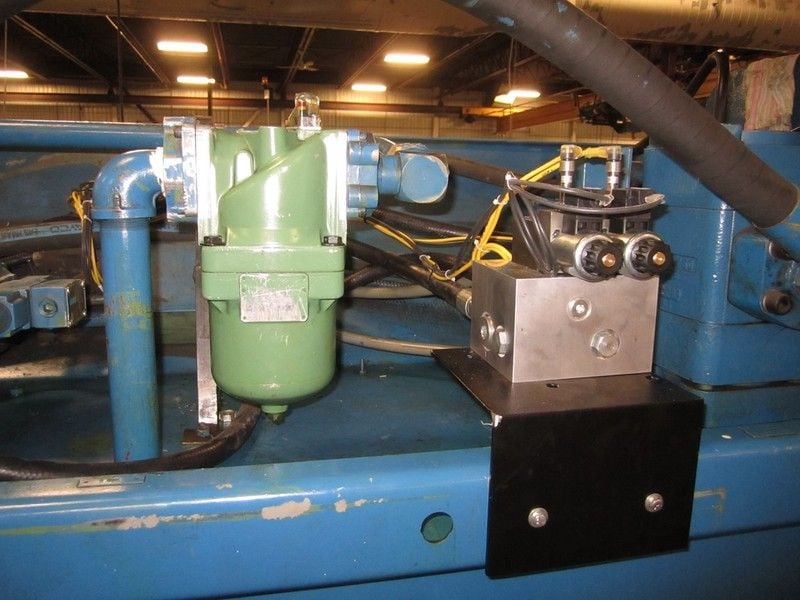

The Hydraulic Safety Manifold (HS-PRSDB-06) and the (DDTT) assembly incorporates valving required to safely support the dual cylinder Press Brake's moving crosshead.  The manifold circuit complies to US ANSI/OSHA B11.2-1995(R2000) and Canadian Z142-10 Code for hydraulic presses.  All ports will be SAE O-ring ports, no NPT ports on manifold.  Two PRSDB and one (DDTT) manifold assemblies are required per Press Brake.  The PRSDB and the DDTT assemblies will be static and dynamic tested prior to shipping.

                          (1)    High strength aluminum manifold block

                          (1)    Electric monitored directional safety lock valve, 4-way, 2-position, D03; Hytos

                          (1)    Direct operated safety relief valve screw-in cartridge; Sun

                          (1)    High Pressure proximity sensor.

                          (1)    Pressure monitoring test connection throughout manifold
