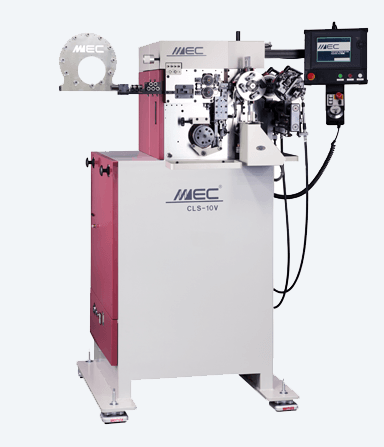

A dedicated machine for the high-speed production of extension springs,the CLS-10V transfers strings produced after coiling and performs formation and product checks at each stage.
Enables high-speed production of extension springs with a beautiful hook shape.
-A dedicated machine for extension springs with a wire diameter of 0.12 mm to 1.0 mm.
-Produces a more beautiful hook shape than any other machine.
-Enables a much higher speed of production than general torsion machines.
-Programs for a wide variety of hooks are provided.
Beautiful hook shape
The CLS-10V can produce English hooks, German hooks, U hooks, side hooks, and Indian hooks.
-Enables creation of extended hooks in which the two hooks are wound together neatly.
-Enables processing without a straight line at the end of the cut.
-Enables processing without an opening at the end of the cut.
Maximum production speed of 120 items per minute a much greater production volume than standard (quill type) torsion machines.
IS-1X shape detection unit with camera
6-point simultaneous measurement with 2 cameras
