CLS-16Ⅱ

Item Code: CLS-16Ⅱ
An extension spring machine with a maximum wire diameter of 1.6 mm.

Maintains the popular high-speed productivity for English loops and bicyclic loops and greatly improves the preparation for German hooks, U hooks, and other atypical hooks.

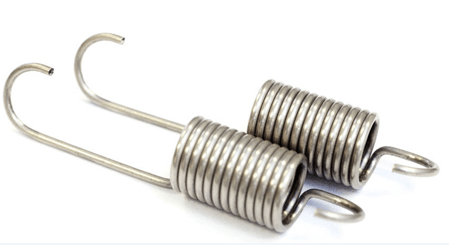

Enable high-speed production of extension springs with a beautiful hook shape

-A dedicated extension spring machine for wire diameters of 0.5 to 1.6 mm.

-Produces the beautiful hook shape expected of the CLS series.

-Enables a much higher speed of production than general torsion machines.

-The 11 axis control of the CLS-16II enables many locations to be controlled by values, including the coiling point for 3D operations, and provides high performance preparation and reproduction.



Make the production of German hooks and U hooks easier

-The CLS-16II maintains the production performance of English loops and bicyclic loops, while greatly enhancing the ease of producing German hooks and U hooks.

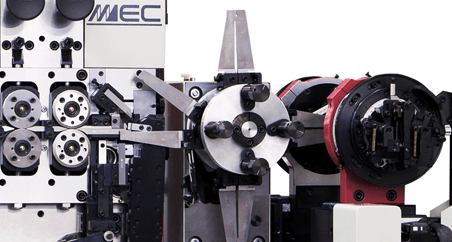

-The number of Hooking tools for processing the hooks has been increased from three to six, to enable easier adjustment and stronger coil retention.

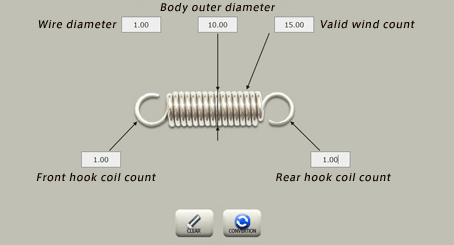

Pattern programs

-Programs are automatically generated for the 3D coiling point operations and wire feed amounts required for the shapes of same diameter, different diameter, one-side U hooks, and both-side U hooks.



Optional Equipment

IS-1x  shape detection unit with camera

Two cameras measure the hook shape on both sides

-Stage sensor units (various)
