WH-8

Item Code: WH-8

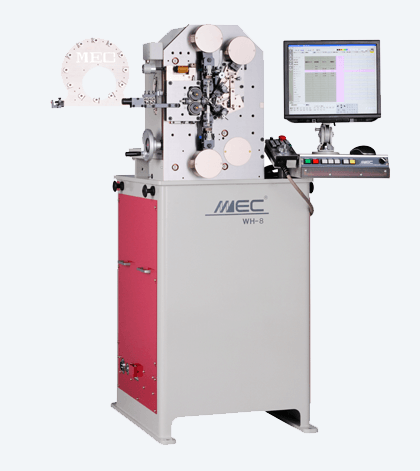

A 5-axis, 2-point coiling machine with a maximum wire diameter of 0.8 mm and excellent cost-effectiveness.

The simple structure enables high-speed production and high accuracy in a reduced preparation time.

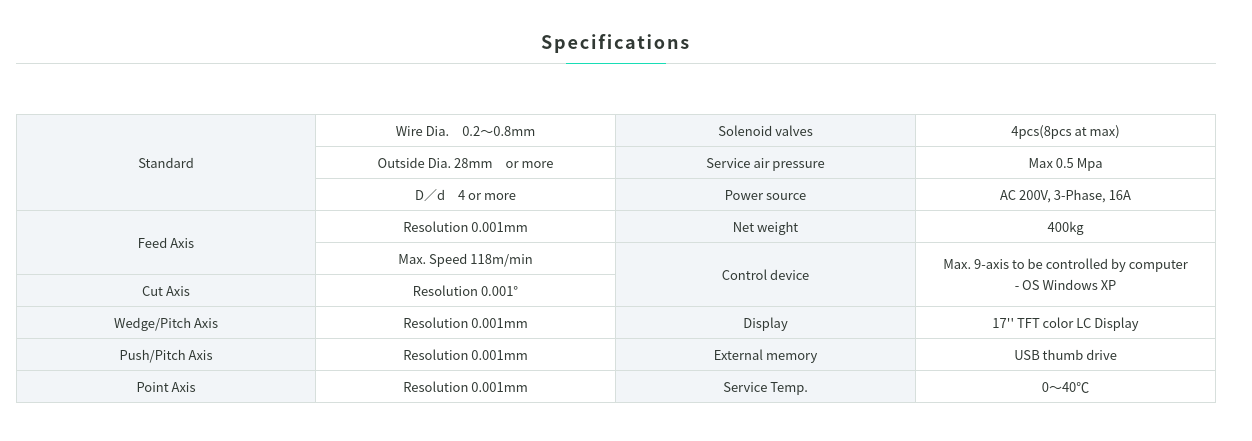

2-point coiling machine with a wire diameter of 0.2 to 0.8 mm

-Maximum outer coil diameter of 28 mm

-Equipped with 5 standard axes: feed, cut, wedge pitch, push pitch, and outside coil diameter.

-An optional initial tension servo can be added.

-Enables easy setup and high-speed production at a low cost.

-Includes our newly-developed specialist MNO program for spring production, enabling simple and precise operations.

-Features Oriimec's world-renowned precision processing technology for ultra-thin wires.
The WH-8 also includes cutting-edge computer control technology.

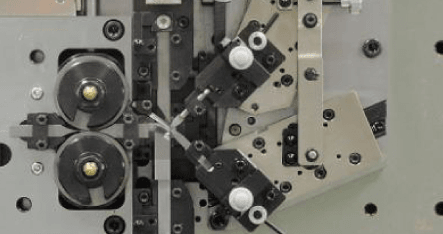

Parts for 2-point mechanism

-All fine-adjustment mechanisms have scale marks to improve reproducibility and ease of fine adjustment.

-Cut operations use a crank mechanism to achieve high-speed production.

-Coiling pin adjustment features an oscillating mechanism.

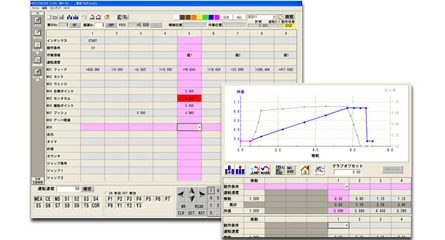

Dedicated MNO Program for Spring Production


-Easy operations for quicker preparation.

-High resolution for controlling the latest servo motors.

-Compatible with compression spring creation programs based on line graphs.

-Allows varied control based on measurement results, such as the pitch and diameter.

-Common program for both torsion machines and coiling machines.

-Includes a motor sensor system.

-Versatile production management screen and production data collection function.

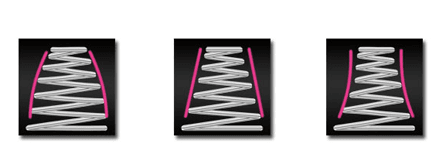

Taper synchronization constant

Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.



Optional Equipment

-Initial tension servo unit

-Counterclockwise unit

-Slip sensor to detect slips in wire feeding

-MSD-1 sensor with servo motor to enable measurement of free length and outer diameter.

IS-1 shape detection unit with camera
