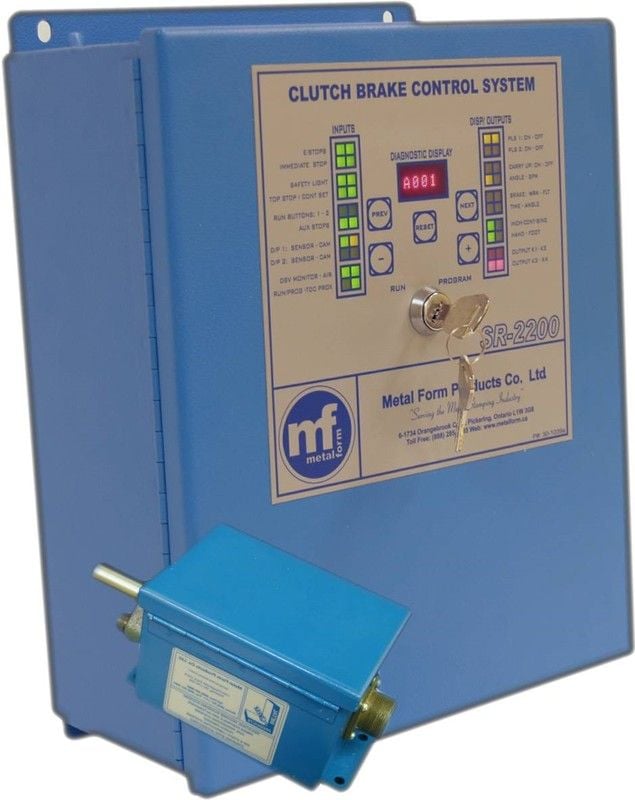

SR-2200 ENCODER BASED CLUTCH BRAKE CONTROLLER

Item Code: SR-2200
The Mini-Mod SR-2200 is a control reliable Clutch Brake System that uses state of the art technology to incorporate press automation features as Programmable Cams and a Brake Monitor.
Design and operational features:



  • Compact design
  • Designed and manufactured in accordance with ANSI B-11 and the CSA Z 142-10
  • Dual, redundant microprocessor design
  • Supervisory key selectable "program" or "run" functions
  • Built-In brake monitor with programmable "Warn" and "Fail" settings
  • Modes or operation include - Inch, Single and Continuous
  • Operator input with two-hand, anti-tie down built in
  • Two programmable out-put cams
  • Two Die Protection inputs. Each with nine modes of operation
  • Hand or foot operation selectable

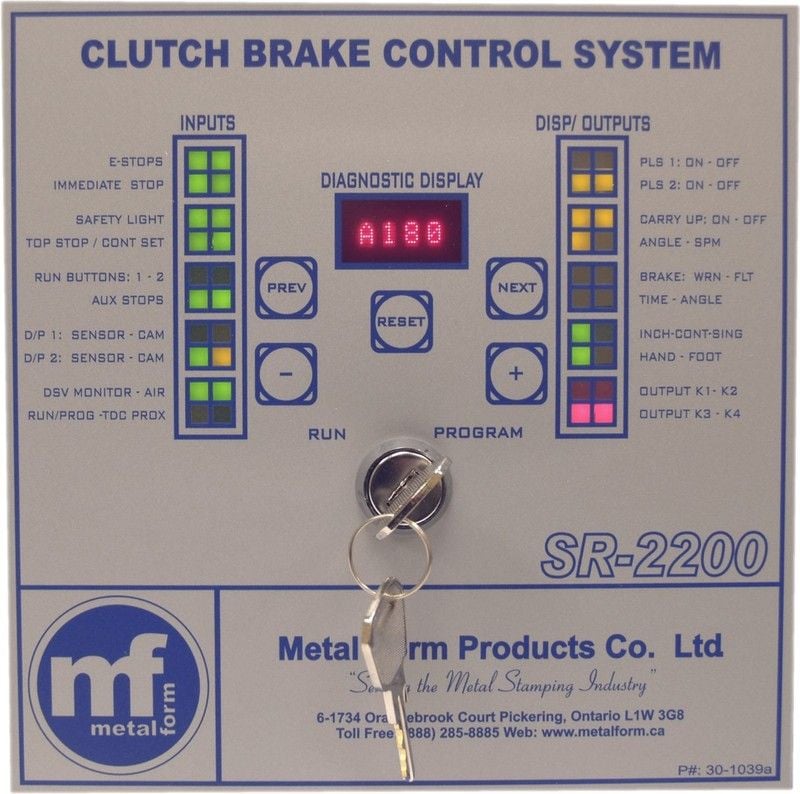

  • Multi-Functional, plain English diagnostic display
  • TDC proximity switch kit and universal mounting bracket included
  • Industrial grade, absolute encoder with 20' cable is included
  • Inputs for external safety devices.
  • Available in panel mount or in a Nema 12 box
  • Two Year Warranty
