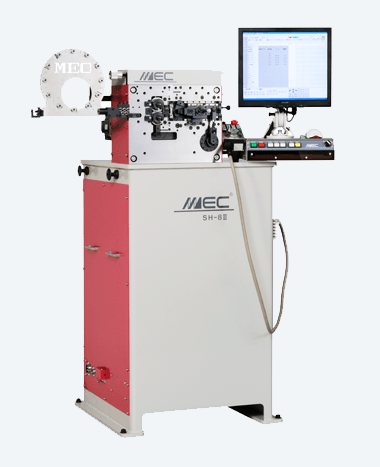

SH-8Ⅱ

Item Code: SH-8Ⅱ

The SH-8, our multifunctional coiling machine with 1-point coiling, torsion attachment, and an initial tension servo, has been fully revamped for greater operability and high-speed production.

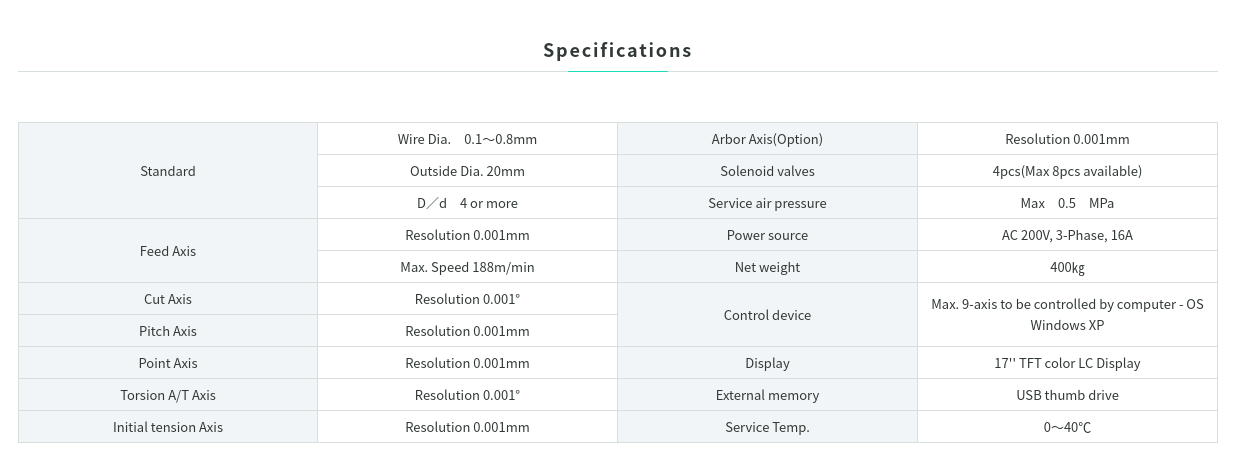

1-point coiling machine with a wire diameter of 0.1 to 0.8 mm

-Maximum outer coil diameter of 20 mm

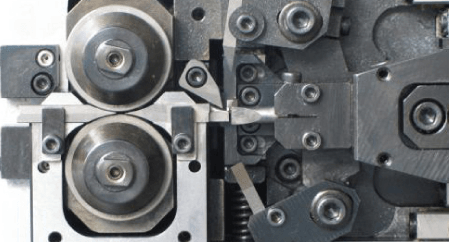

-Equipped with 7 standard axes: feed, cut, pitch, point, torsion, initial tension, and MSD-1.

-Optional core forward/reverse servo unit provided.

-Easier setup and greater speed than previous models, as the cut axis and torsion axis are separated.
-Suitable for high-speed production of torsion springs and elliptical springs in addition to standard cylindrical springs.

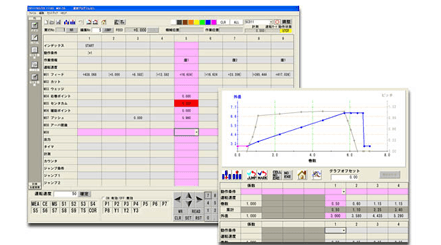

Dedicated MNO Program for Spring Production

-Easy operations for quicker preparation.

-High resolution for controlling the latest servo motors.

-Compatible with compression spring creation programs based on line graphs.

-Allows varied control based on measurement results, such as the pitch and diameter.

-Common program for both torsion machines and coiling machines.

-Includes a motor sensor system.

-Versatile production management screen and production data collection function.

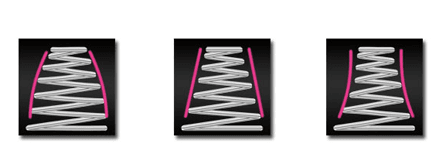

Taper synchronization constant

Enables the taper tilt to be managed with a value from 0 to 100.
Suitable for load adjustment in addition to shape adjustment, as fine adjustment can be performed in 100 levels.



Optional Equipment

-Core forward/reverse servo unit

-Slip sensor to detect slips in wire feeding

-Capacitance level sensor

IS-1 shape detection unit with camera
