Safety Ram Blocks Metal Form

Item Code: Safety Ram Blocks
The Safety Ram Block by Metal Form Product Co. Ltd is an industry first. It's unique hex shape enables the block to provided added load bearing protection without increasing it's mass.
  • Manufactured in Canada from 6061 T6 Aluminum
  • High capacity to weight ratio
  • User-friendly size encourages use
  • High-Visibility yellow helps ensure compliance
  • Durable, powder-coated finish
  • High Strength nut and rod assembly from C1018 steel

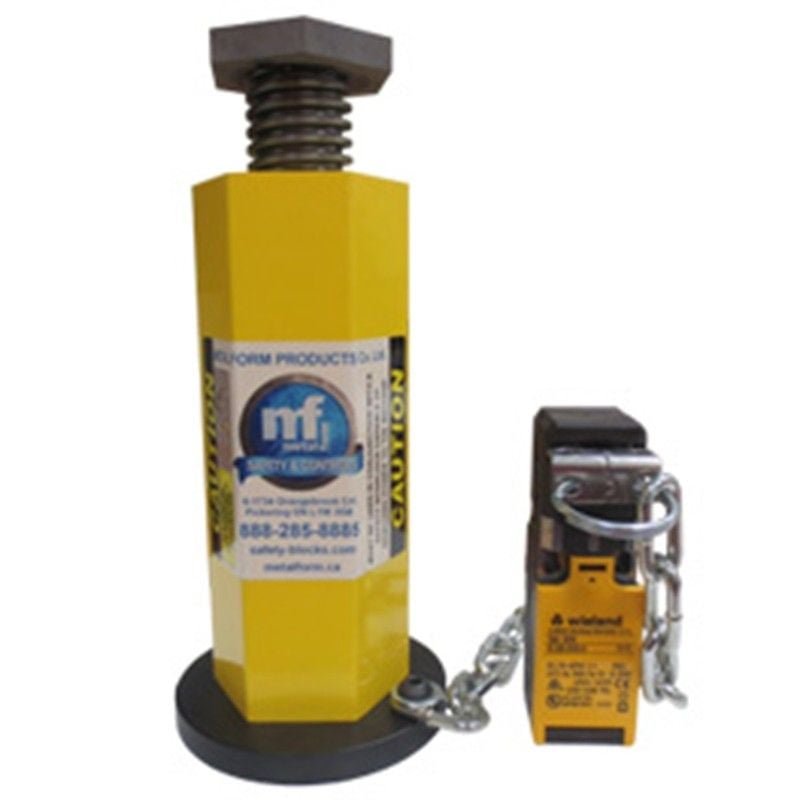

  • Factory prepared for safety interlock devices

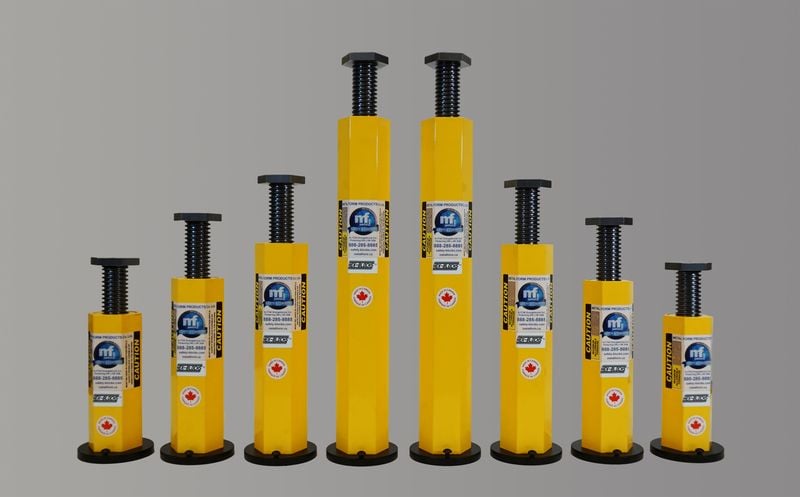

  • Wide range of available sizes
  • Custom Colors available for color-coded device programs
  • Multiple interlock options available

Custom blocks can be manufactured as requested.

Learn more about the full range of Metal Form Safety Ram Blocks here.

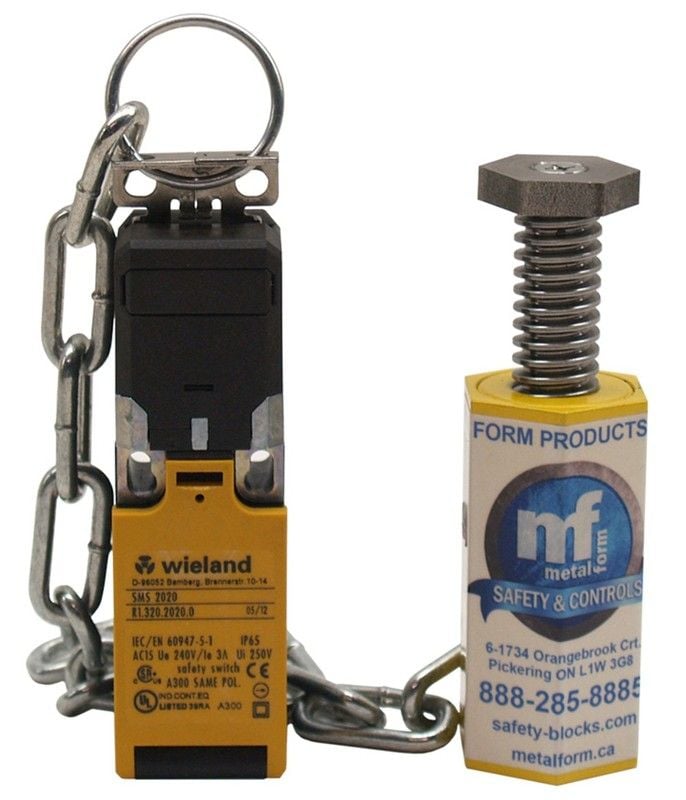

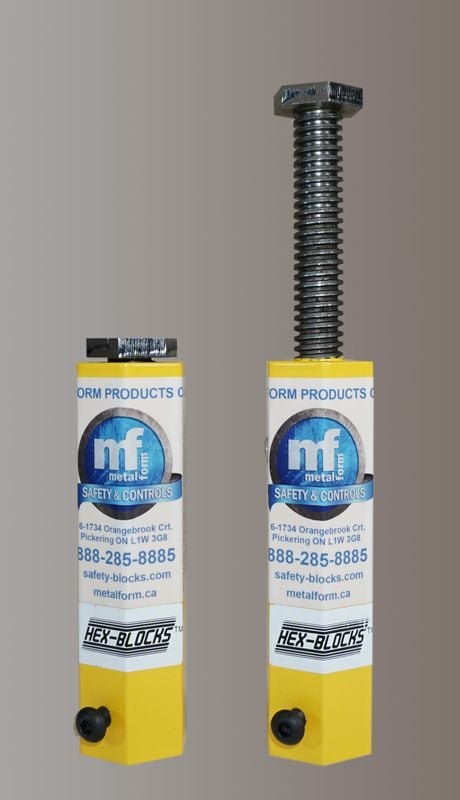

The HEX Jr.

This is the ideal block for bench, lab, small OBI punch and brake presses.

Popular for both press and in-die applications, the HEX Jr. features a 5/8 Ø" ACME thread and is available for use with loads up to 6 tons and maximum openings of 12".


The HEX Block

This is the ideal block for most punch and brake press applications.

With its small foot-print, 1 1/4"Ø ACME screw and a high strength to weight ratio. It is our most popular model.

The HEX is an ideal replacement for the old, un-popular and massive ram blocks.

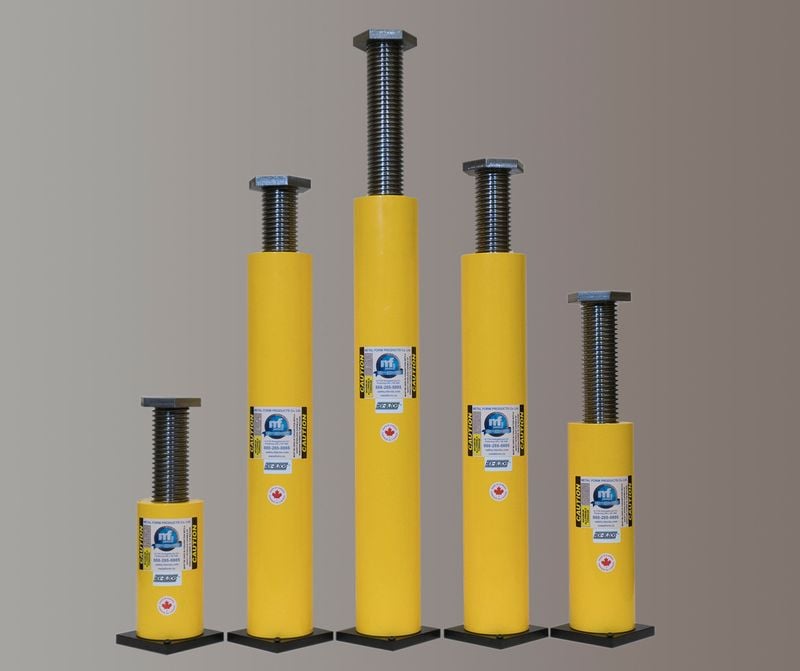

The MAX Block

Designed for larger presses, the MAX Block provides greater load capacity at extended heights. This model is equipped with a beefy, 2"Ø ACME screw assembly.



The Mag Block

Rare Earth Magnetic Base, designed for inclined press applications.





Custom Blocks

Have an unusual application?

We've made blocks from 2 inches small to 10 feet tall and blocks for presses with three moving rams.



Learn more about the full range of Metal Form Safety Ram Blocks here.
