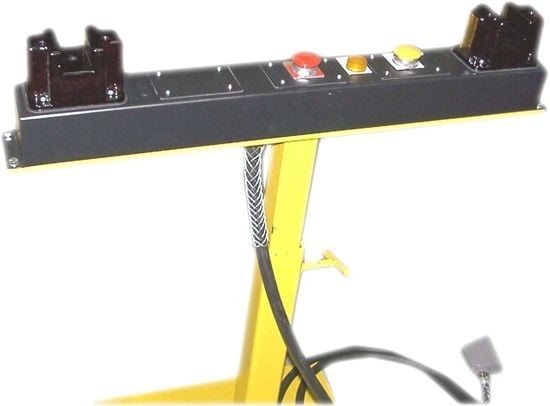

ULTRATOUCH PINNACLE

Item Code: ULTRATOUCH
The patented Ultra Touch (R) system had been designed as a direct replacement for standard spring-loaded mechanical palm buttons and is designed to fit into existing operator palm button stations without modification.  CSA and UL certified.

The Ultra Touch enclosure is molded, high-strength NEMA 4 polycarbonate module designed to meet the high impact and vibration requirements of industry.

The circuitry of Ultra Touch is also designed to provide second-order failure protection providing an unparalleled level of safety and assurance against inadvertant actuation or failing in the "on" or conducting mode.  The Ultra Touch  is designed so that two modules, when spaced and located properly in accordance to OSHA and ANSI hand control distance formulas (the same formula is used for mechanical  palm buttons), require the operator to accuate the switches concurrently.  Ultra Touch provides an unparalleled level of ergonomic machine actuation while giving the operator the benefit of using the correct ergonomic hand position of neutral, 0 degree deviation, and 100% hand power.
  • NEMA 4 Sealed Housing
  • Solid State Circuitry
  • Dual Sensor Sources - Infrared/Capacitive
  • Module requires a 2" (51mm) mounting depth in run bar
  • Current Requirements:
    • 110 VAC
    • 2 pole -- 50 mA
    • 4 pole -- 60 mA
    • 24 VDC
    • 2 pole -- 150 mA
    • 4 pole -- 250 mA
    • Response Time



  • Operator Status Indicator -- LED's
    • A. Red - Ready to cycle
    • B. Green - Cycle initiated
  • Relay TypeCaptive Contact Safety Relay
  • Relay Rating - 8 amp @ 220 VAC; 8 amp @ 120 VAC
  • Relay Cycle Life
    • Mechanical - 50 million cycles
    • Electrical - 100,000 cycles at 220 VAC, 4 amp
  • Voltage Range - +/- 10%
  • Warranty - two years
